Schematic Diagrams
WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

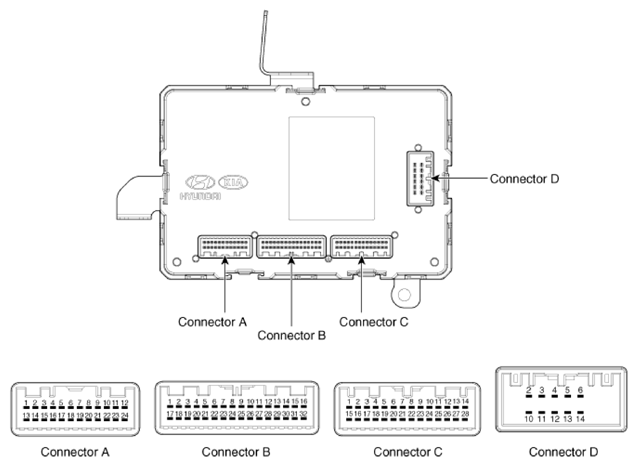

CONNECTOR PIN INFORMATION
| No. | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | - | Key in switch | Front wiper relay (Low) | - |
| 2 | - | Heated handle switch | Auto light sensor (GND) | IGN1 |
| 3 | Rear left seat belt indicator | - | PDW ON switch indicator | IGN2 (Heated handle power_1) |
| 4 | Assist seat belt indicator | - | Heated handle switch indicator | IGN2 (Heated handle power_2) |
| 5 | Rear center seat belt indicator | Multifunction light switch | - | Heated handle power |
| 6 | Rear right seat belt indicator | PDW (Option) | - | Room lamp |
| 7 | - | KEY inter lock switch | Crash signal | Ground (Power) |
| 8 | - | Sunroof open switch | Auto light sensor | - |
| 9 | Mirror unfolding relay | PDW ON switch | NTC Sensor | - |
| 10 | Rear wiper relay | Ground | Headlamp switch (High) | Battery (+) |
| 11 | - | - | Rear wiper switch | - |
| 12 | - | - | Front wiper INT volume switch | - |
| 13 | Key solenoid | - | Front wiper switch | PDW-R Power |
| 14 | - | - | Fog lamp switch | PDW-F Power |
| 15 | ATM solenoid | - | Front wiper relay (High) | Ground (Signal) |
| 16 | - | - | Auto light sensor (Power) | |
| 17 | Security indicator | - | Sunroof enable (High) | |
| 18 | Pocket lamp | - | - | |
| 19 | Safety power window enable (Low) | C-CAN (High) | - | |
| 20 | Key hole illumination | C-CAN (Low) | - | |
| 21 | - | B-CAN (Low) | Front wiper low back up switch | |
| 22 | - | B-CAN (High) | NTC (GND) | |
| 23 | Mirror fold relay | - | IGN2 | |
| 24 | - | LIN_Rain sensor | ACC | |
| 25 | LIN_PAS | Rear wiper washer switch | ||
| 26 | - | Front wiper washer switch | ||
| 27 | - | Blade position (High) | ||
| 28 | Rear defogger switch | Brake switch | ||
| 29 | Rain sensor (Option) | |||
| 30 | - | |||
| 31 | - | |||
| 32 | - |
