Repair Procedures: Replacement
WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the heater and blower assembly.
(Refer to Heater - "HEATER UNIT ")

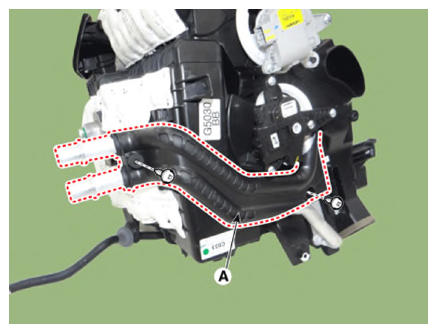

- Loosen the mounting screws and remove heater core cover (A).

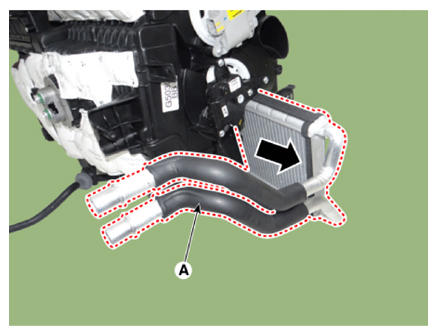

- Pull out the heater core (A) from the heater unit.
- Install in the reverse order of removal.NOTE:
- When installing a new heater core, add refrigerant oil (POE OIL).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
- Immediately after using the oil, replace the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Apply sealant to the grommets.
- Make sure that there is no air leakage.
- Charge the system and test its performance.
- Install the hose clamps securely without interchanging the inlet and outlet heater hoses.
