Driver Side

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

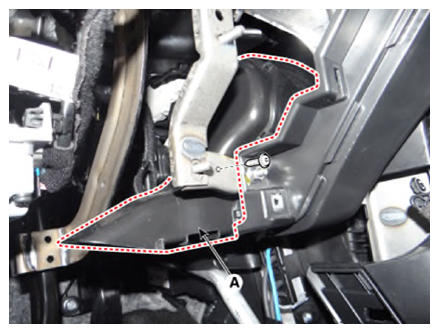

  3. Loosen the mounting screw and remove the cockpit shower duct (A).
    G13351679Courtesy of KIA MOTORS AMERICA, INC.

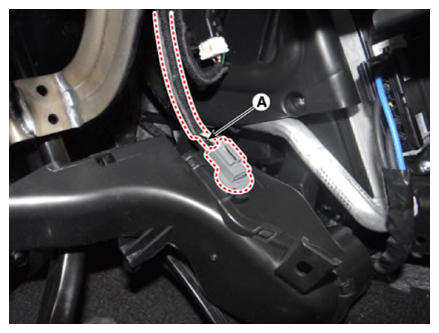

  4. Disconnect the duct sensor connector (A).
    G13351680Courtesy of KIA MOTORS AMERICA, INC.

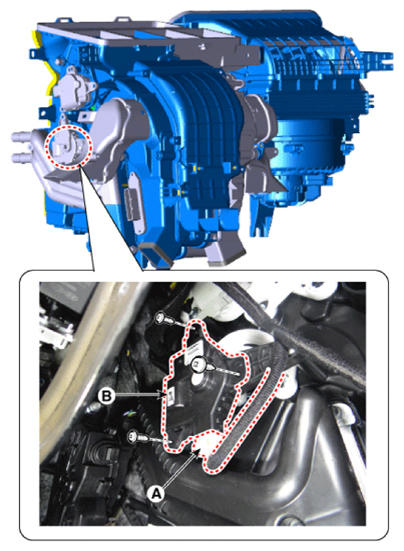

  5. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13351681Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
