Vehicle S/W Management

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

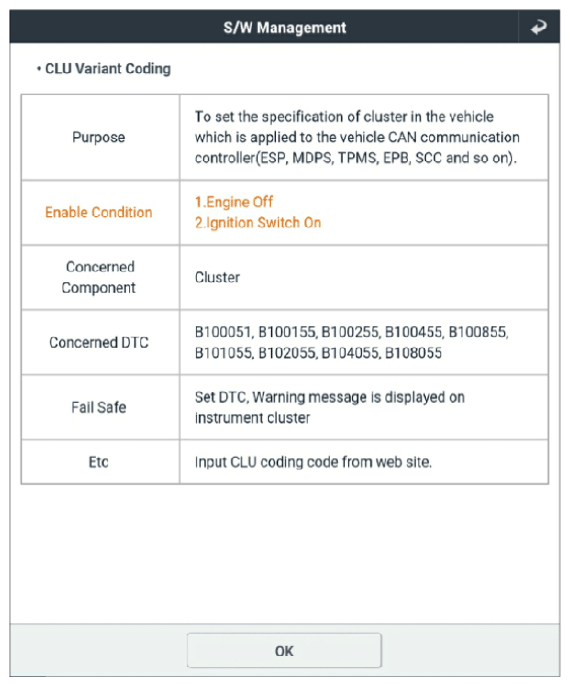

G13354475Courtesy of KIA MOTORS AMERICA, INC.

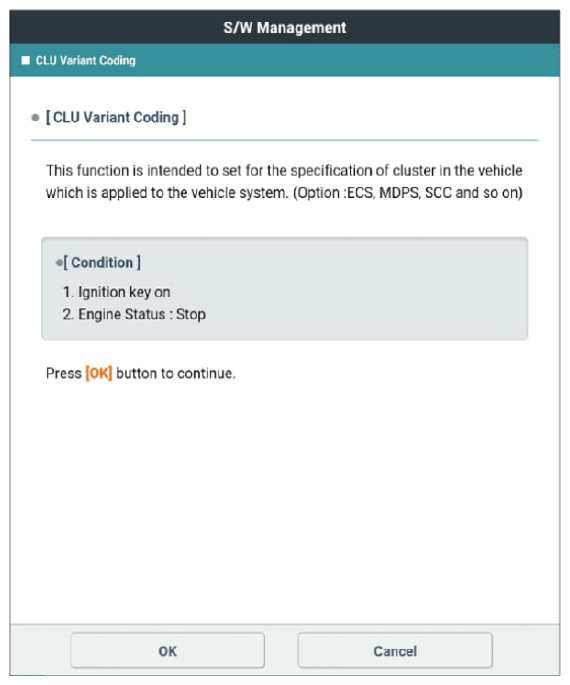

G13354476Courtesy of KIA MOTORS AMERICA, INC.

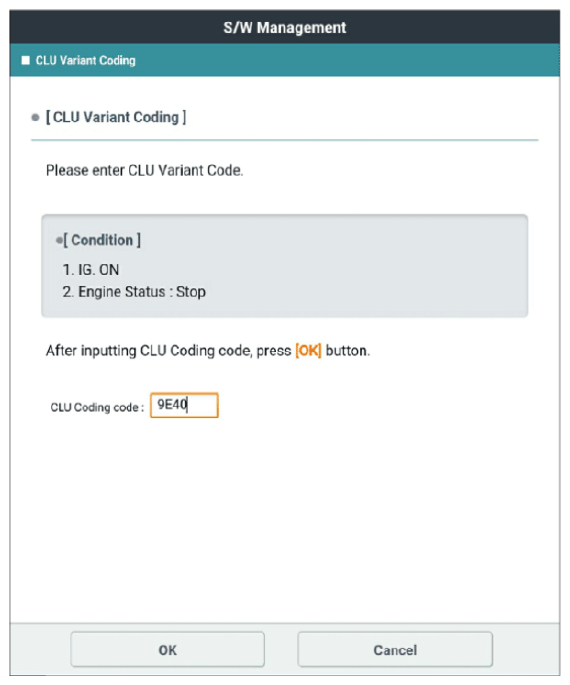

G13354477Courtesy of KIA MOTORS AMERICA, INC.

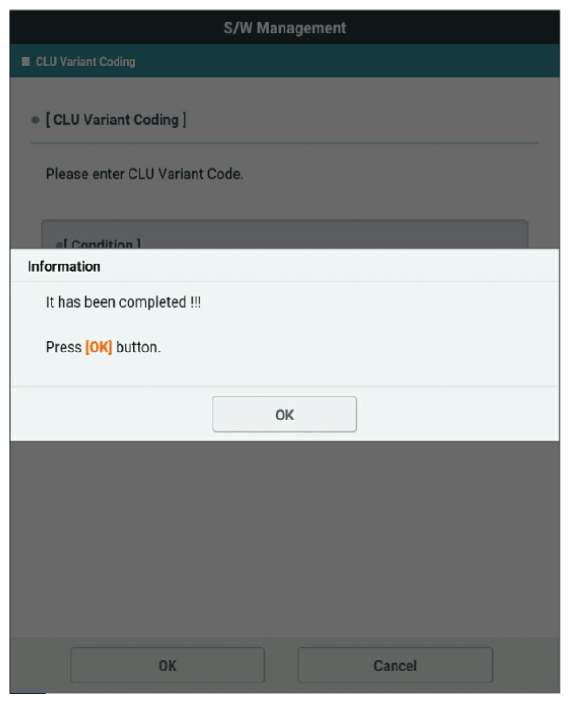

G13354478Courtesy of KIA MOTORS AMERICA, INC.
