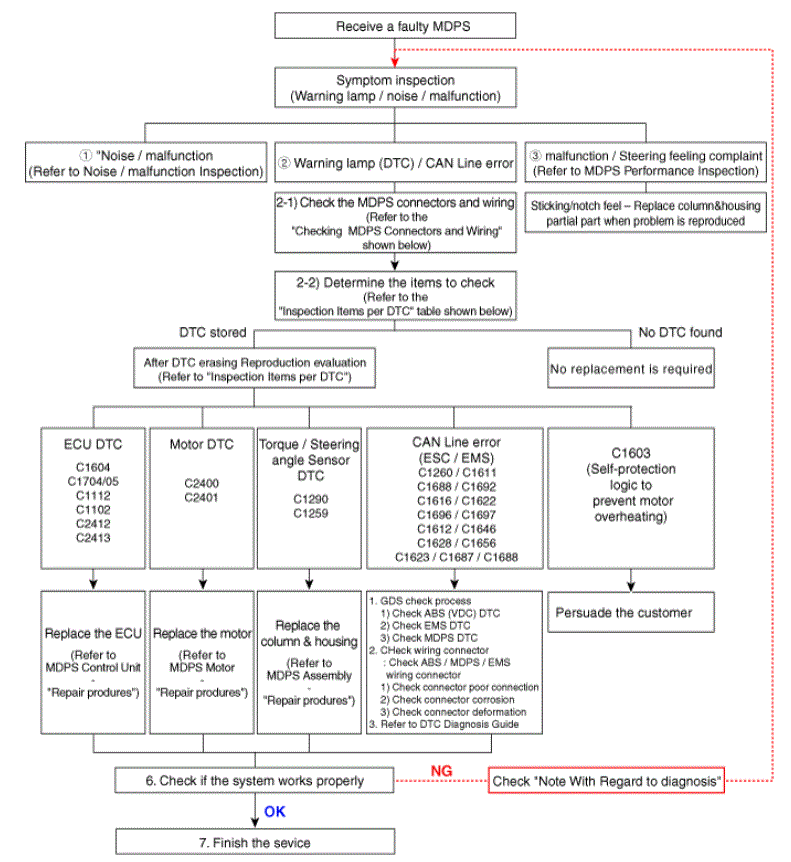

MDPS System A/S Workflow
MDPS System A/S Workflow
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
(2)
Warning lamp (DTC)/CAN Line error
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
