Repair Procedures: Disassembly

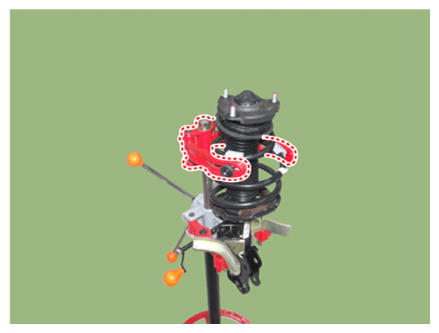

Using a strut spring compressor, compress the coil spring.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

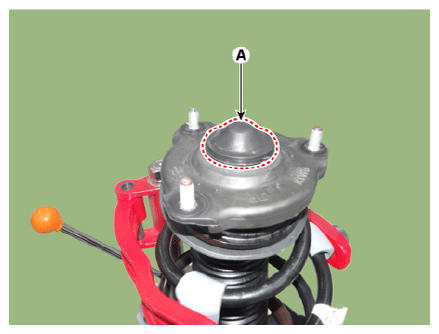

Remove the insulator cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

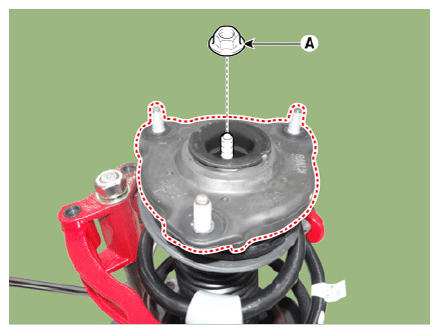

Loosen the insulator nut (A) and then remove the insulator.
Tightening torque:

78.5 - 88.2 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

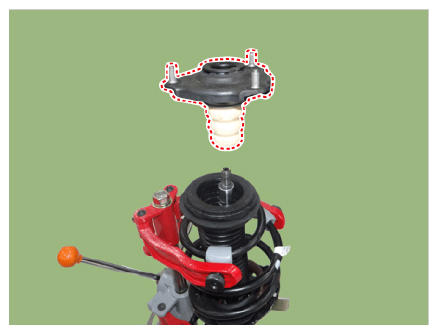

Remove the strut bearing, spring upper bad, rubber bushing.

Courtesy of KIA MOTORS AMERICA, INC.

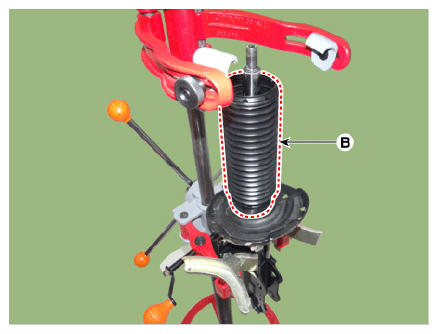

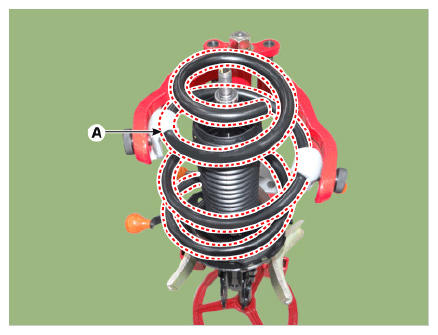

Remove the spring (A) and dust cover (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

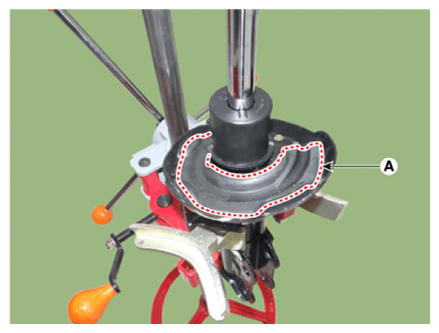

Remove the spring lower pad (A).

Courtesy of KIA MOTORS AMERICA, INC.
