Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

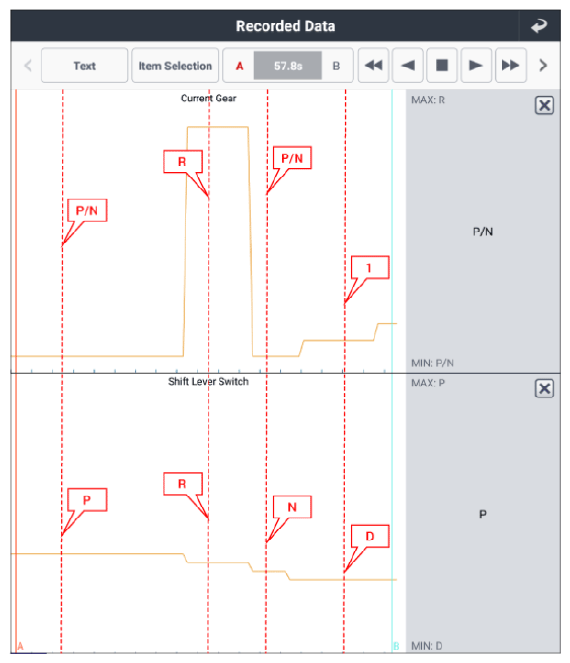

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Refer to "LIFT & SUPPORT POINTS " and lift vehicle with suitable lift. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition. Monitor selected parameters shown below in "Current Data" with KDS.	Figure 1 below

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

If the shift cable is poor alignment, it can cause a malfunction. Therefore check the alignment of the shift cable before replacing the position sensor.
