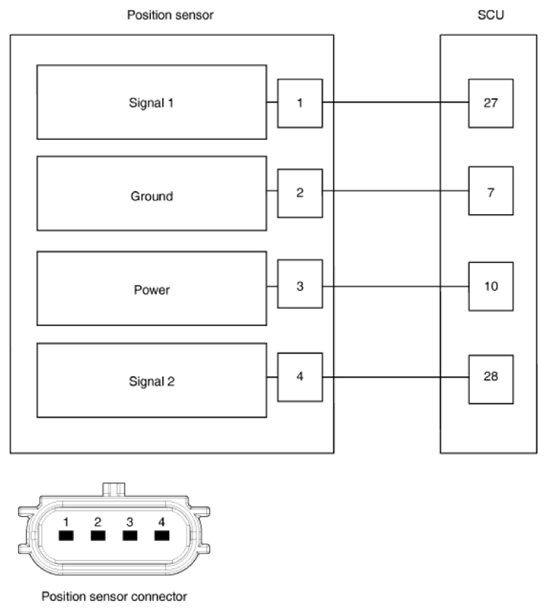

Home › Kia › 2020 › Cadenza Technology › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Position Sensor › Schematic Diagrams › Circuit Diagram
