Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 8
G13301809Courtesy of KIA MOTORS AMERICA, INC.

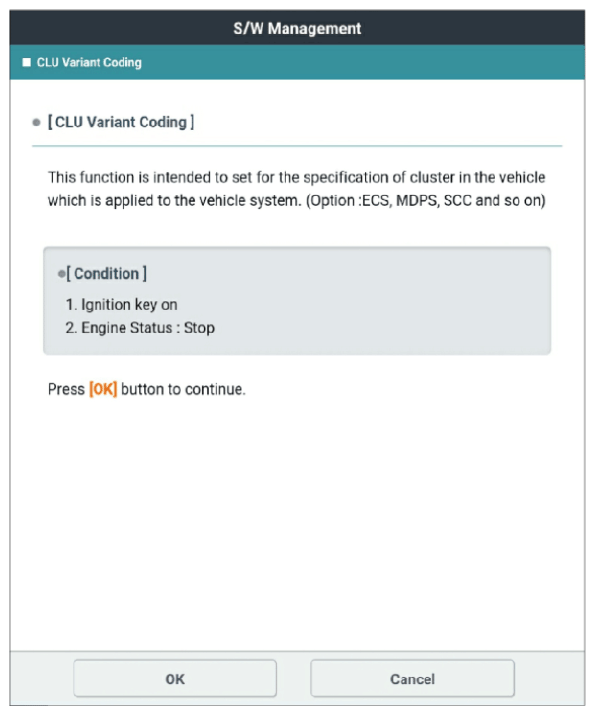

G13301810Courtesy of KIA MOTORS AMERICA, INC.

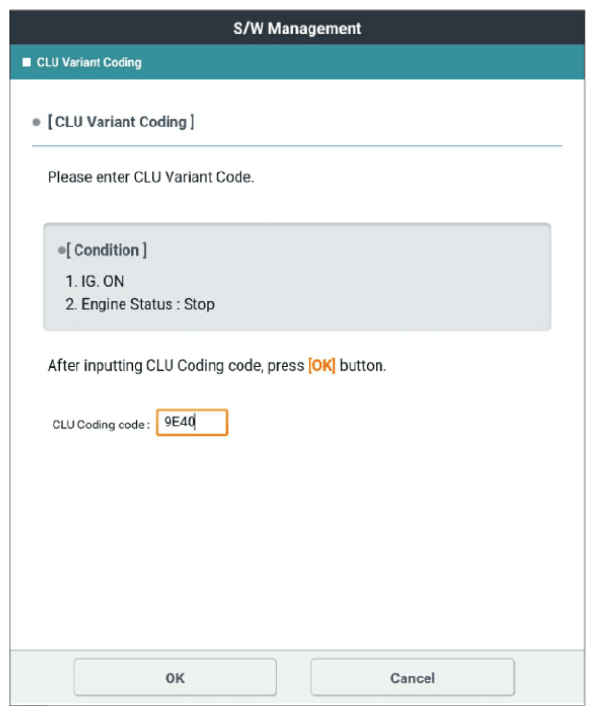

G13301811Courtesy of KIA MOTORS AMERICA, INC.

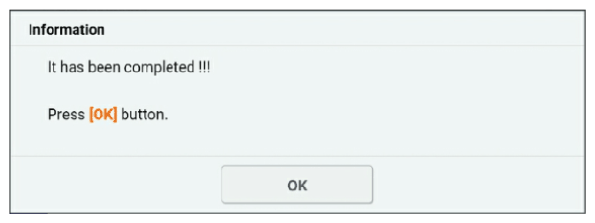

G13301812Courtesy of KIA MOTORS AMERICA, INC.

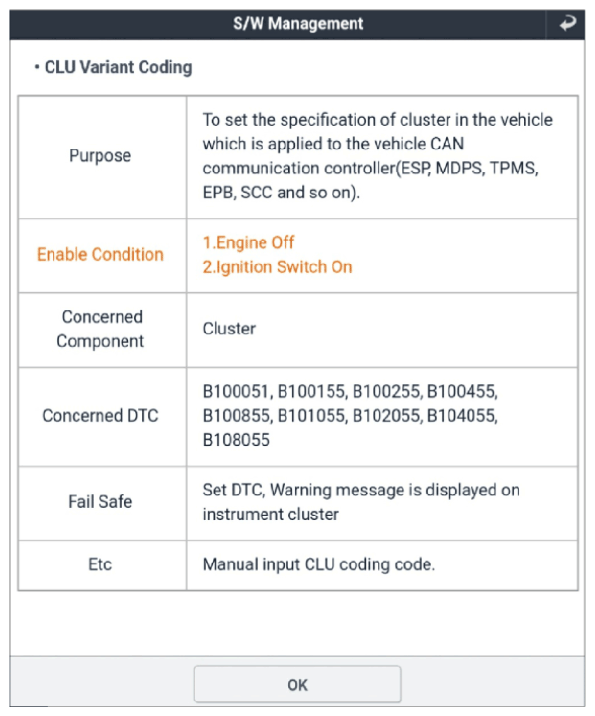

G13301813Courtesy of KIA MOTORS AMERICA, INC.

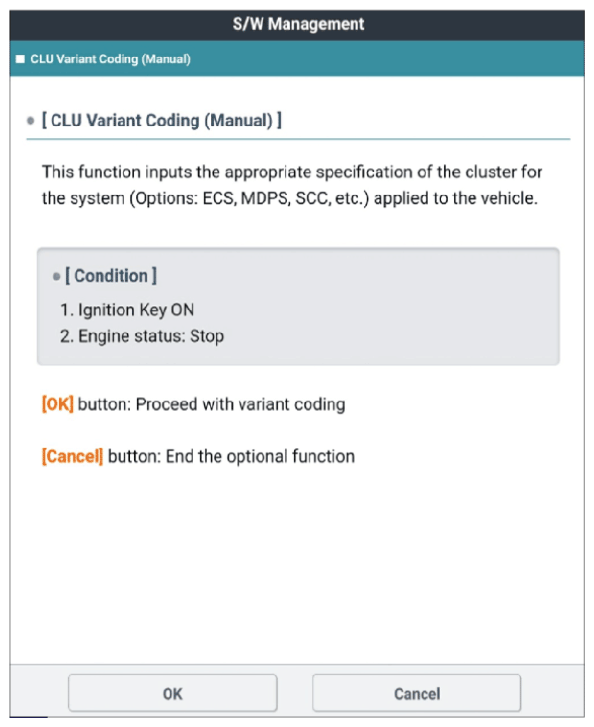

G13301814Courtesy of KIA MOTORS AMERICA, INC.

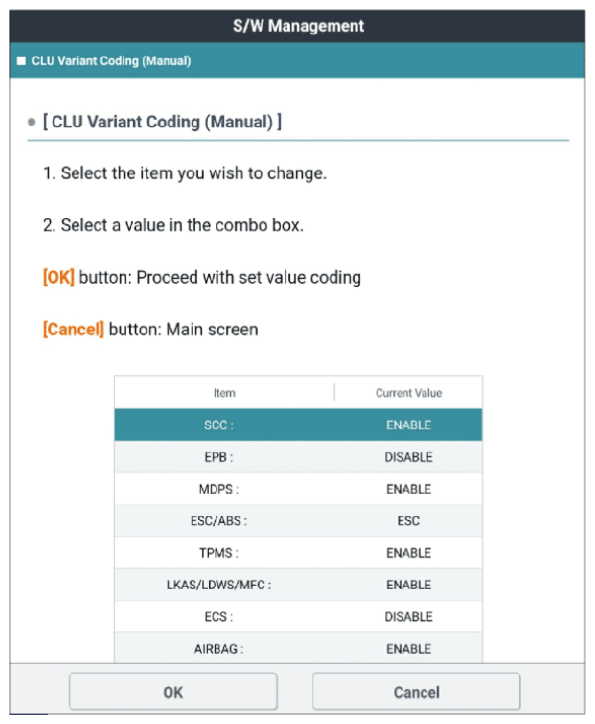

G13301815Courtesy of KIA MOTORS AMERICA, INC.

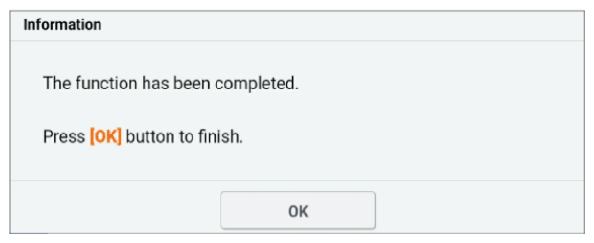

G13301816Courtesy of KIA MOTORS AMERICA, INC.
