Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8
G13301889Courtesy of KIA MOTORS AMERICA, INC.

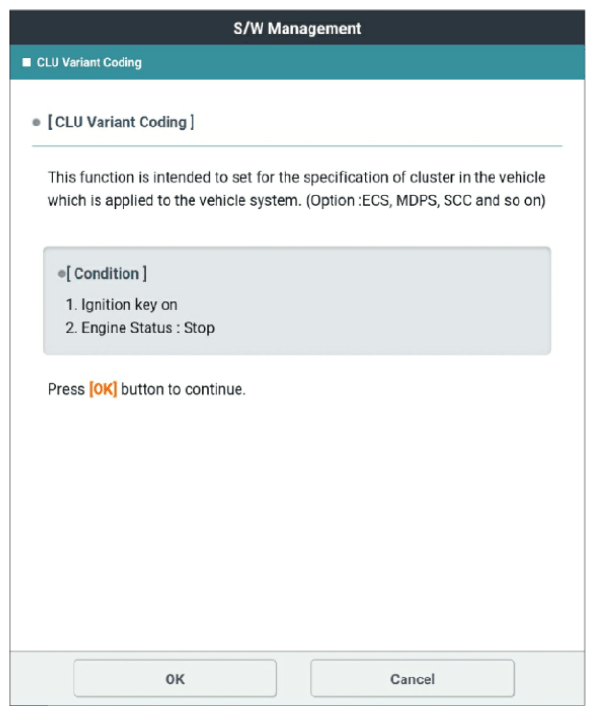

G13301890Courtesy of KIA MOTORS AMERICA, INC.

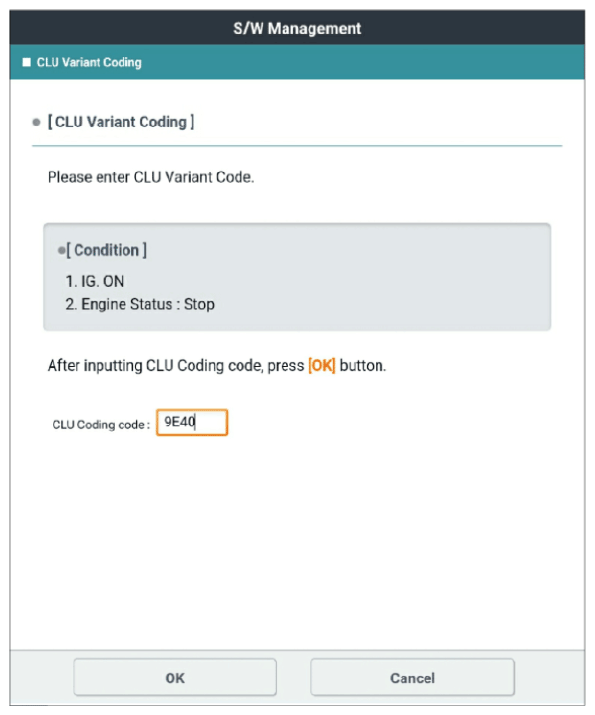

G13301891Courtesy of KIA MOTORS AMERICA, INC.

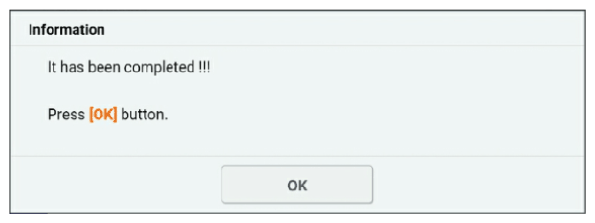

G13301892Courtesy of KIA MOTORS AMERICA, INC.

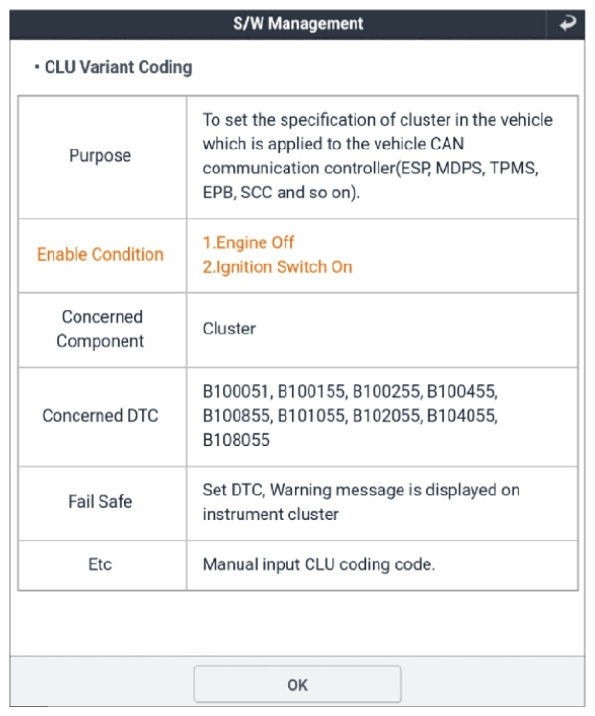

G13301893Courtesy of KIA MOTORS AMERICA, INC.

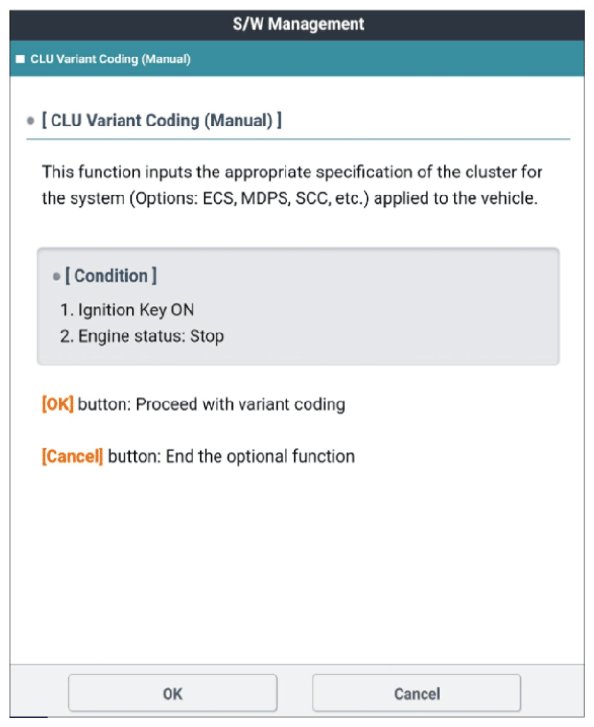

G13301894Courtesy of KIA MOTORS AMERICA, INC.

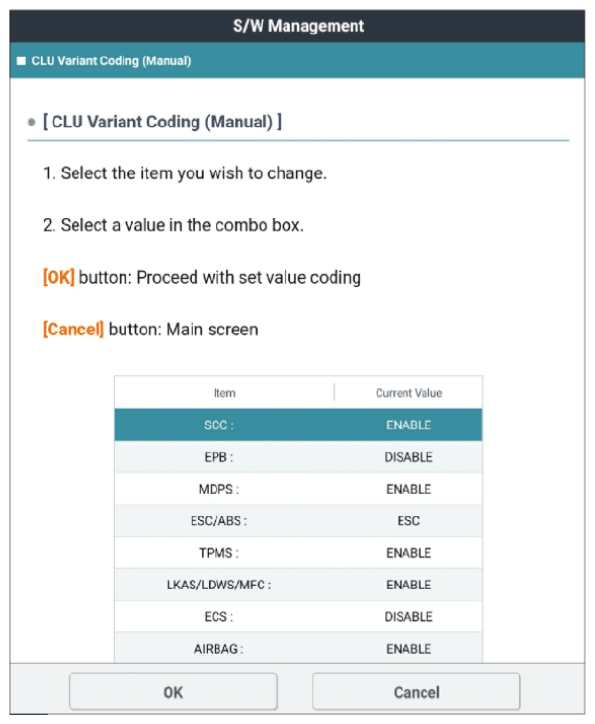

G13301895Courtesy of KIA MOTORS AMERICA, INC.

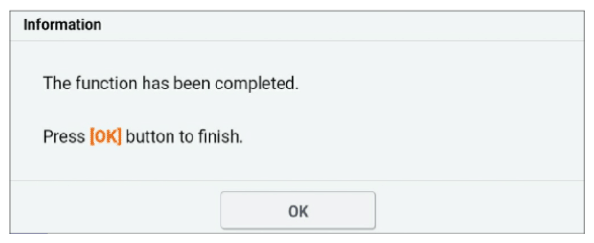

G13301896Courtesy of KIA MOTORS AMERICA, INC.
