Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

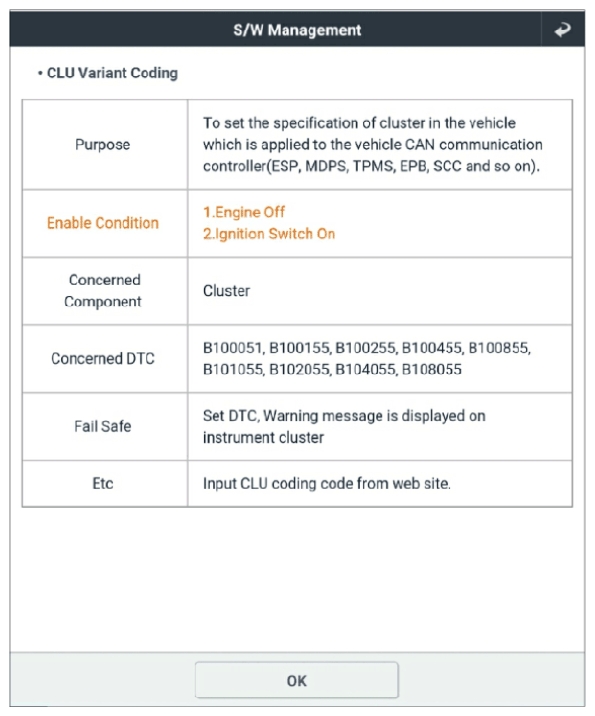

G13302009Courtesy of KIA MOTORS AMERICA, INC.

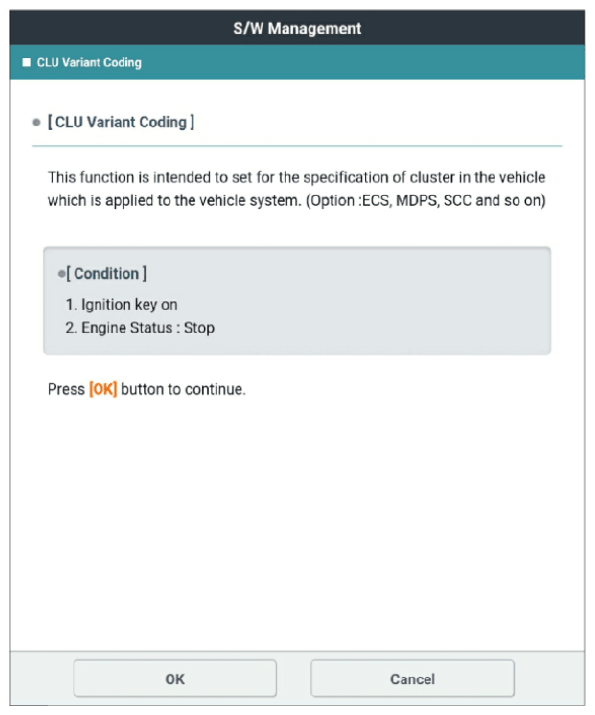

G13302010Courtesy of KIA MOTORS AMERICA, INC.

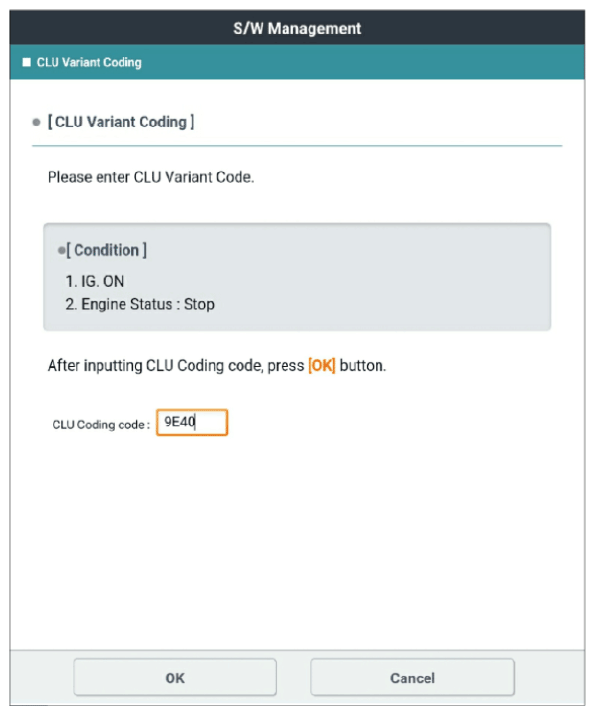

G13302011Courtesy of KIA MOTORS AMERICA, INC.

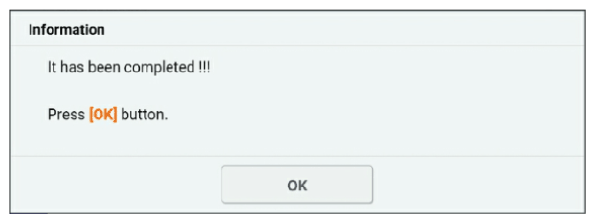

G13302012Courtesy of KIA MOTORS AMERICA, INC.

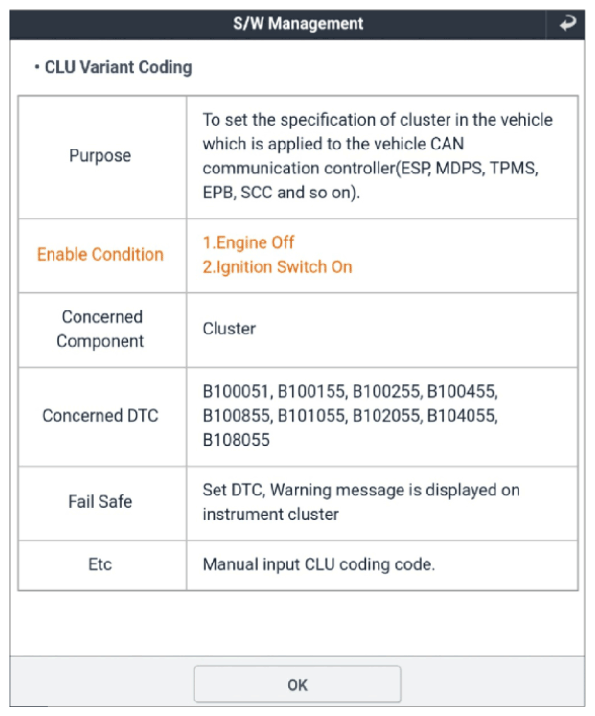

G13302013Courtesy of KIA MOTORS AMERICA, INC.

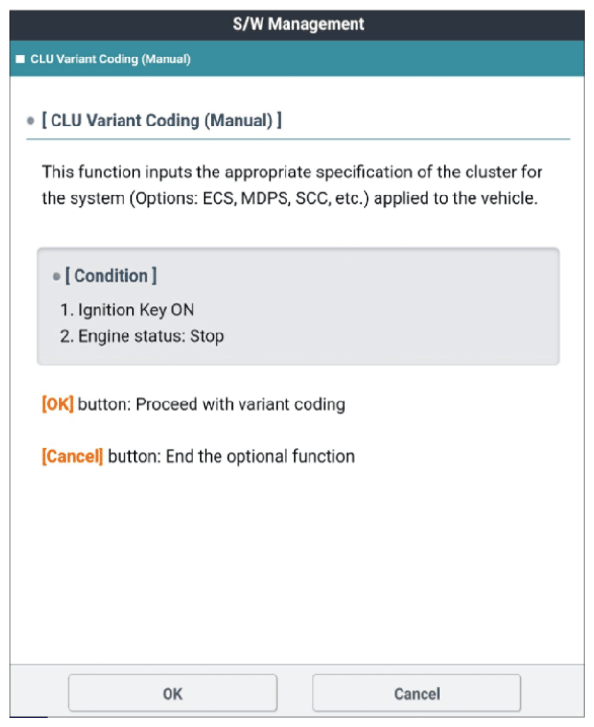

G13302014Courtesy of KIA MOTORS AMERICA, INC.

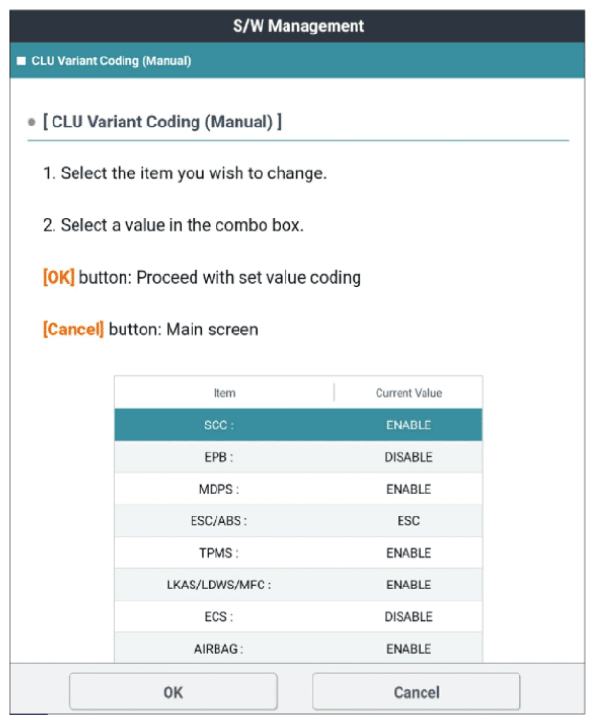

G13302015Courtesy of KIA MOTORS AMERICA, INC.

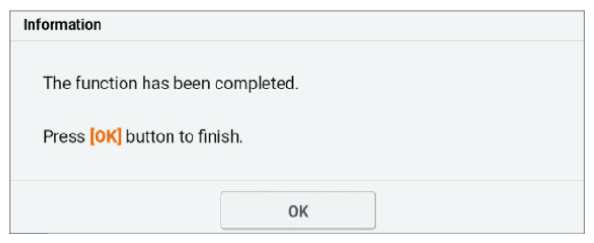

G13302016Courtesy of KIA MOTORS AMERICA, INC.
