Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

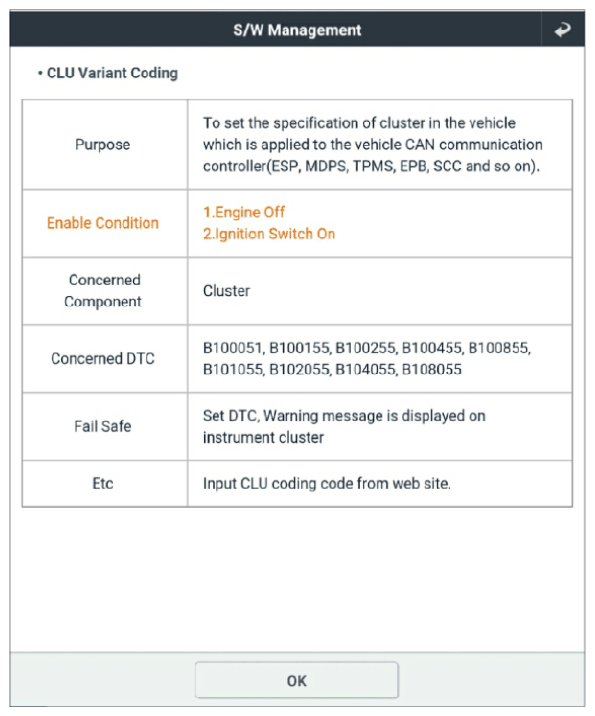

G13301969Courtesy of KIA MOTORS AMERICA, INC.

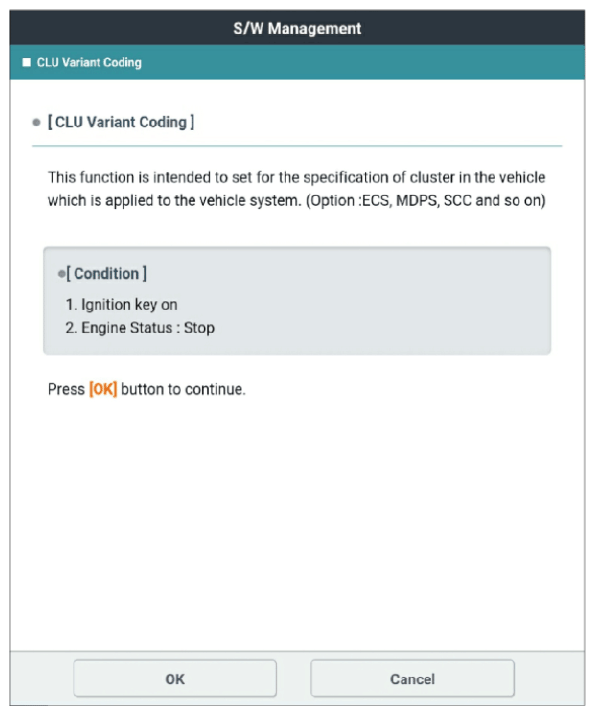

G13301970Courtesy of KIA MOTORS AMERICA, INC.

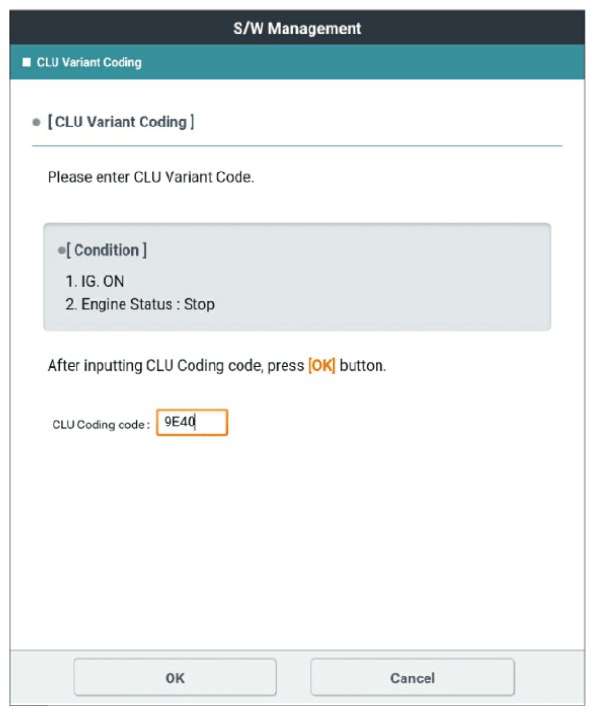

G13301971Courtesy of KIA MOTORS AMERICA, INC.

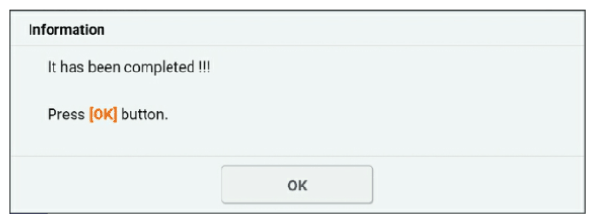

G13301972Courtesy of KIA MOTORS AMERICA, INC.

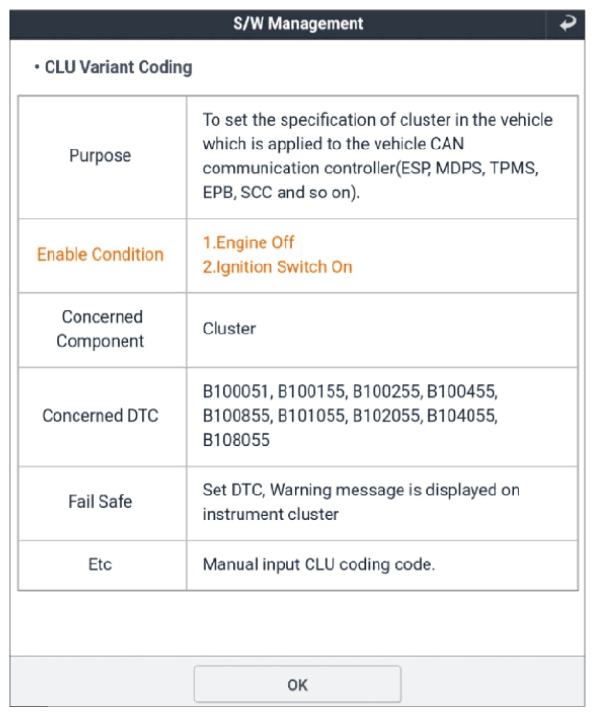

G13301973Courtesy of KIA MOTORS AMERICA, INC.

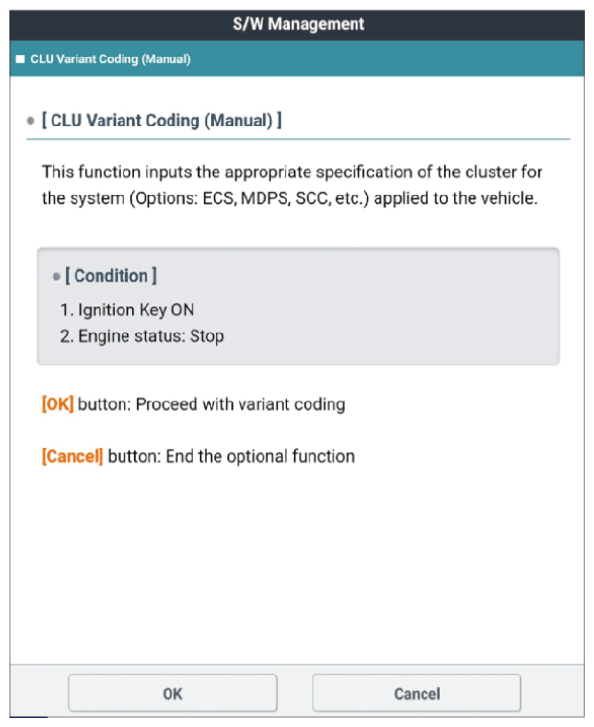

G13301974Courtesy of KIA MOTORS AMERICA, INC.

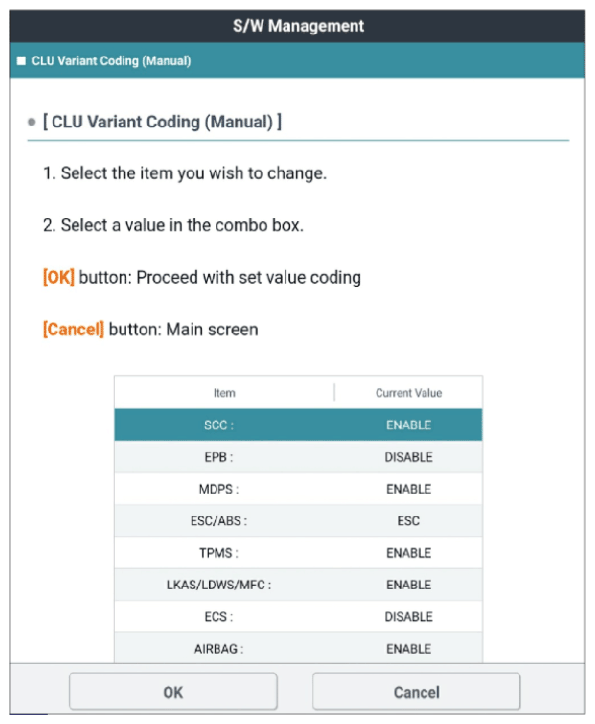

G13301975Courtesy of KIA MOTORS AMERICA, INC.

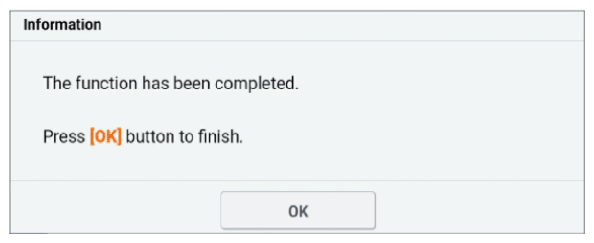

G13301976Courtesy of KIA MOTORS AMERICA, INC.
