Power Trunk Module
›
Power Trunk Inner Switch
›

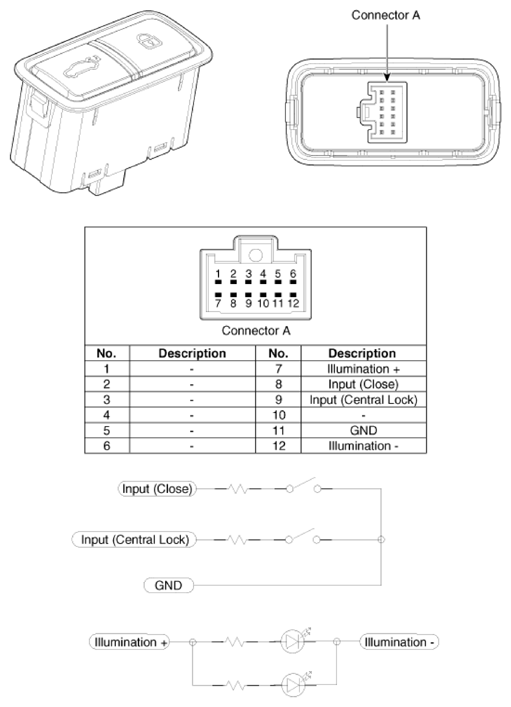

Schematic Diagrams
›
Connector and Terminal function
Connector and Terminal function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
