Connector and Terminal function

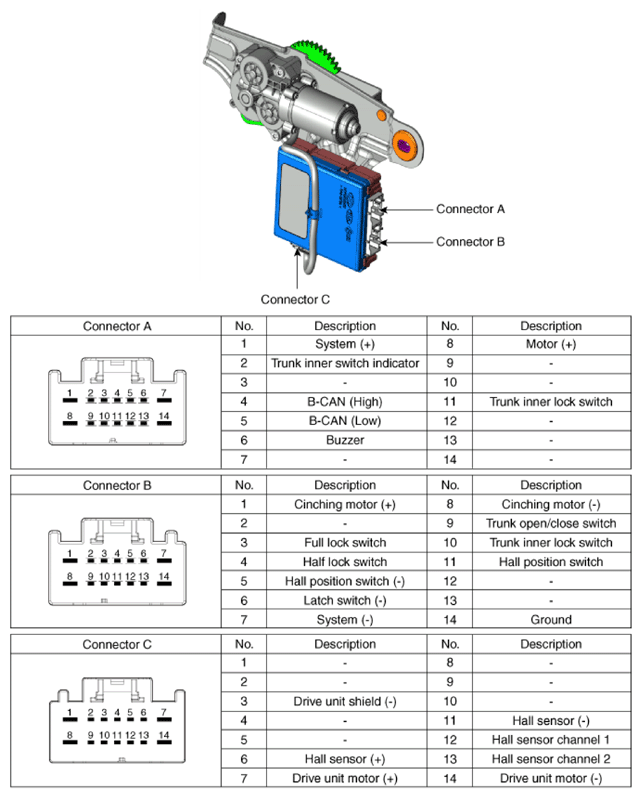

G13128950Courtesy of KIA MOTORS AMERICA, INC.

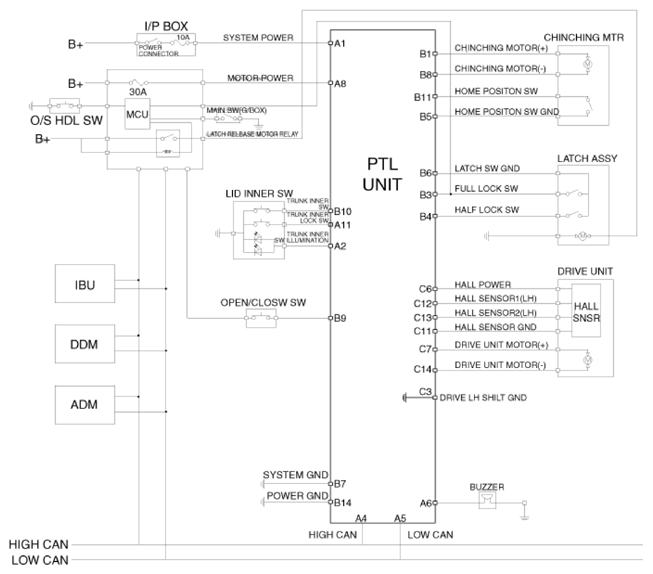

G13128951Courtesy of KIA MOTORS AMERICA, INC.
