Repair Procedures: Removal

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

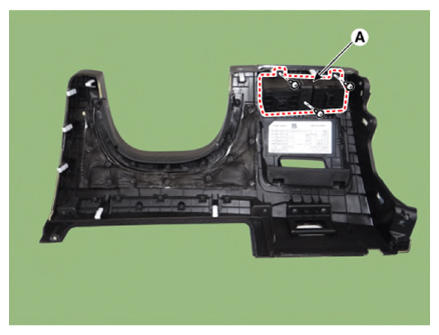

  2. Remove the switch assembly (A) after loosening the mounting screws.
G13128980Courtesy of KIA MOTORS AMERICA, INC.
