Head Up Display System
›
Head Up Display Unit
›

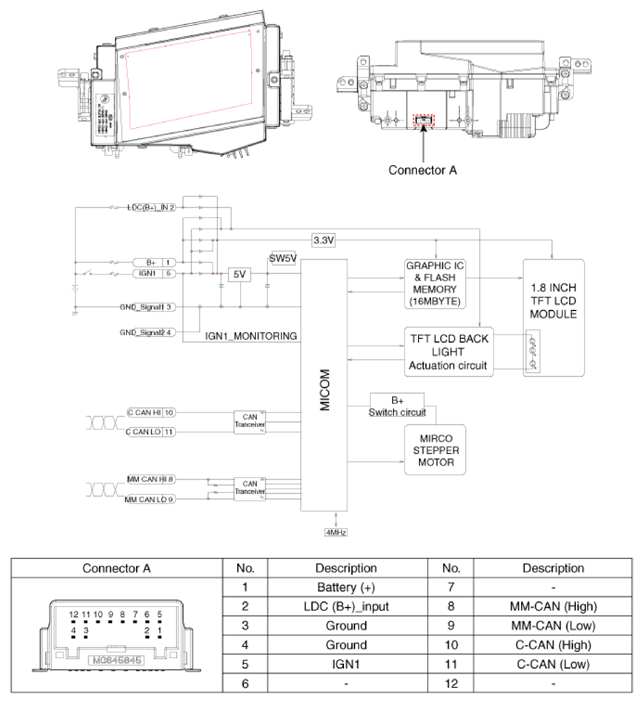

Schematic Diagrams
›
Connector and Terminal function
Connector and Terminal function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
