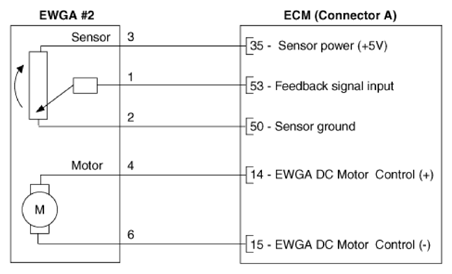

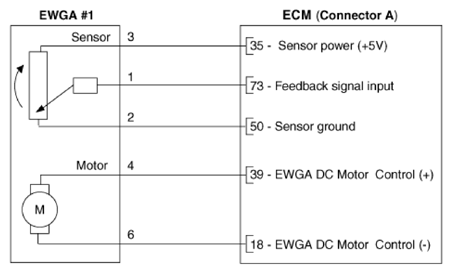

Home › Kia › 2020 › K900 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Electric Waste Gate Actuator (EWGA) › Schematic Diagrams › Circuit Diagram › Notes
