Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

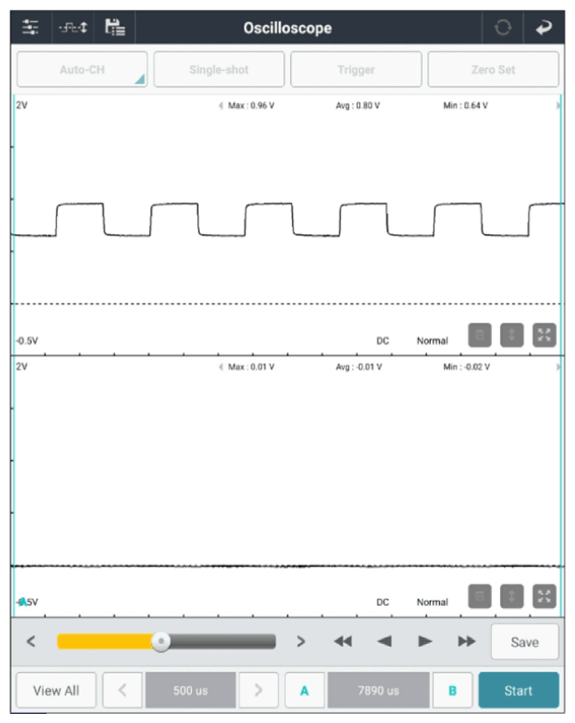

Ignition "ON"., engine "ON".	HO2S#3 (B1/S2) connector	1 (sensor signal)	Chassis ground	-	Figure below
Ignition "ON"., engine "ON".	HO2S#3 (B1/S2) connector	2 (sensor ground)	Chassis ground	-	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the HO2S (B1/S2) and go to "VERIFICATION OF REPAIR " procedure.
