Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 8

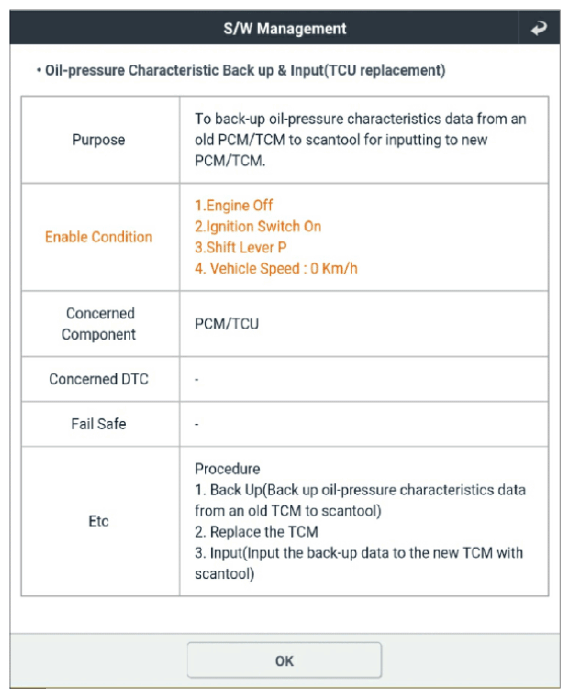

G13144943Courtesy of KIA MOTORS AMERICA, INC.

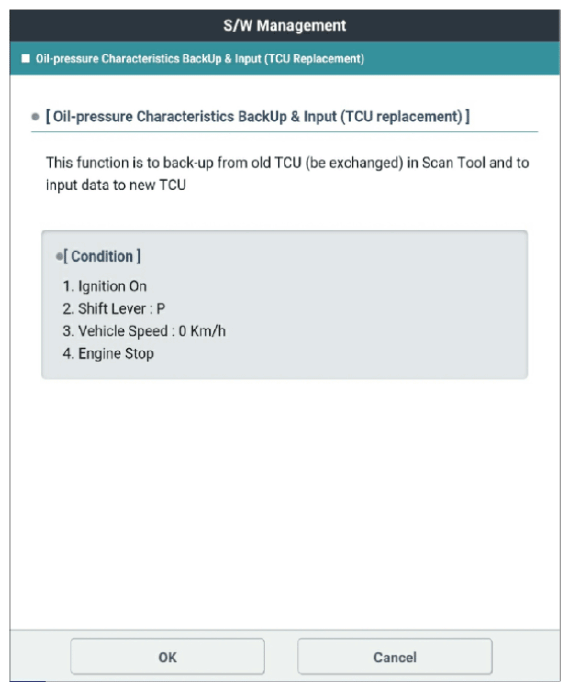

G13144944Courtesy of KIA MOTORS AMERICA, INC.

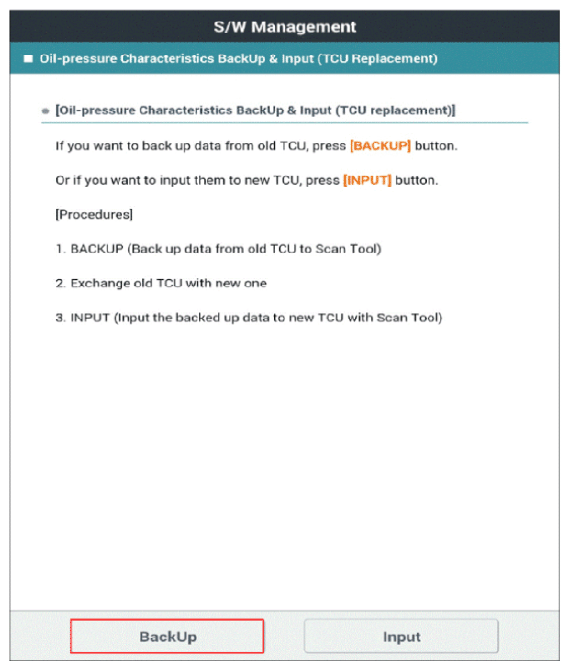

G13144945Courtesy of KIA MOTORS AMERICA, INC.

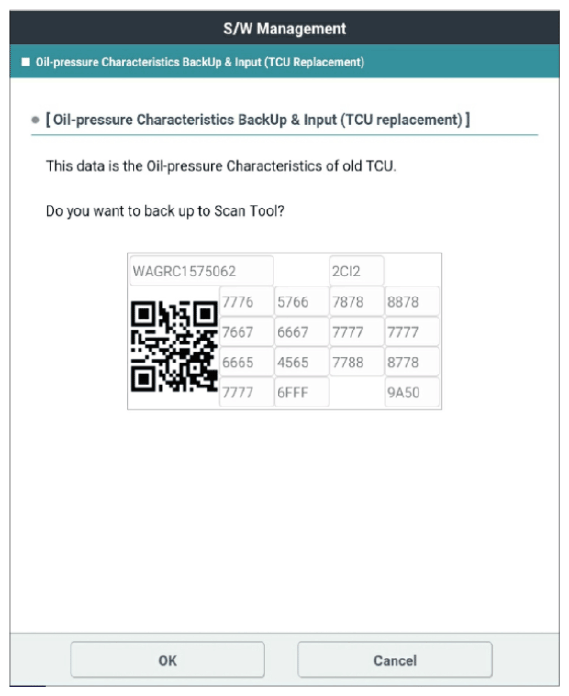

G13144946Courtesy of KIA MOTORS AMERICA, INC.

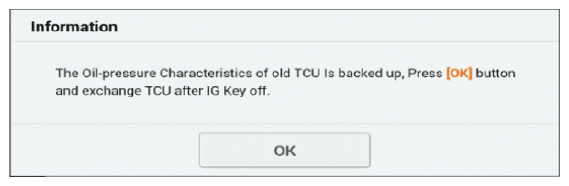

G13144947Courtesy of KIA MOTORS AMERICA, INC.

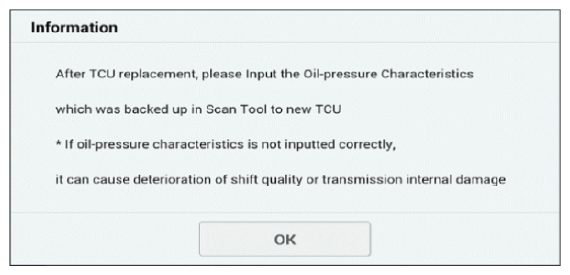

G13144948Courtesy of KIA MOTORS AMERICA, INC.

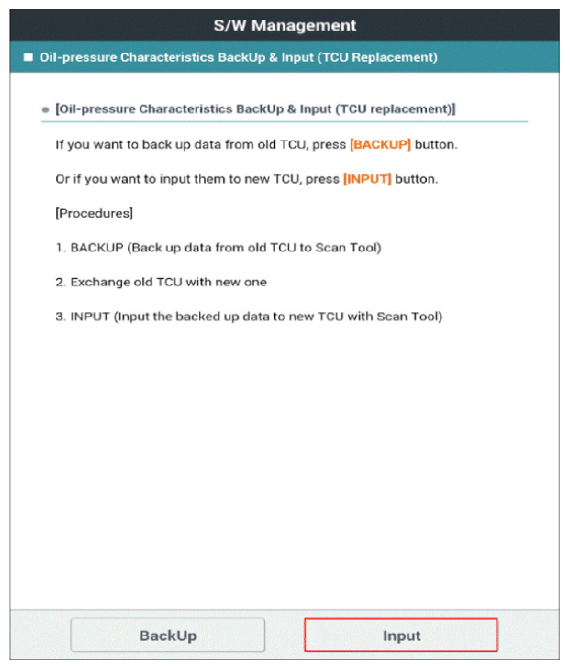

G13144949Courtesy of KIA MOTORS AMERICA, INC.

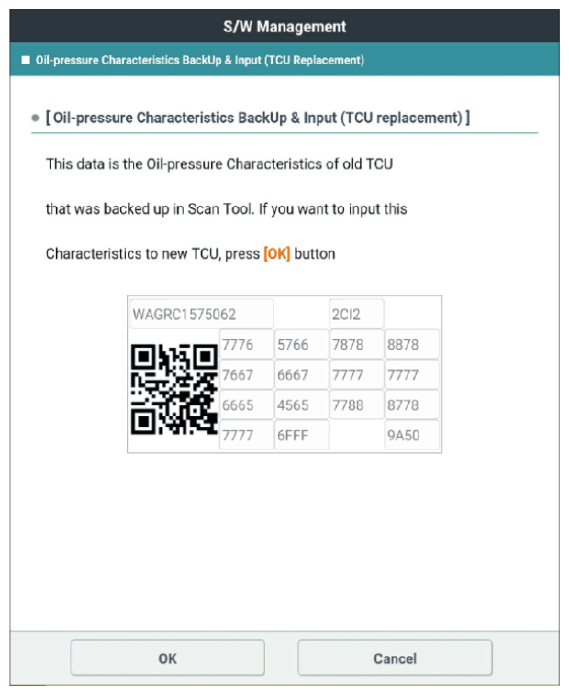

G13144950Courtesy of KIA MOTORS AMERICA, INC.
