Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

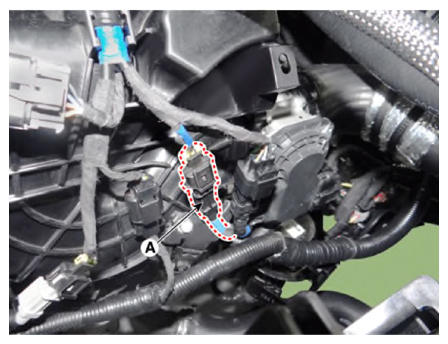

Disconnect the crankshaft position sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover,
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

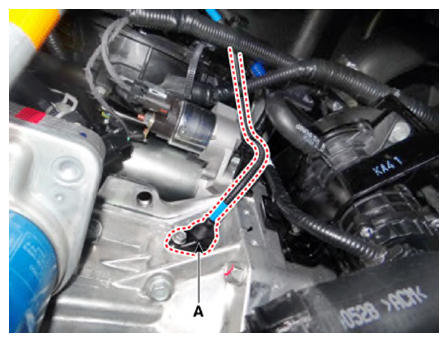

Remove the sensor (A) by loosening the mounting bolt.

Courtesy of KIA MOTORS AMERICA, INC.
