Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

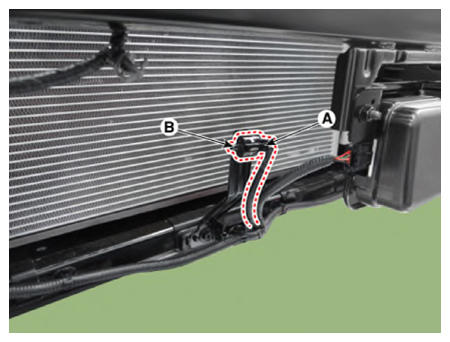

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
    G12915386Courtesy of KIA MOTORS AMERICA, INC.
