Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be careful not to damage the hood and body.

Information

Removing Or Installing The Hood Requires An Assistant.
When removing the clips, use a clip remover.

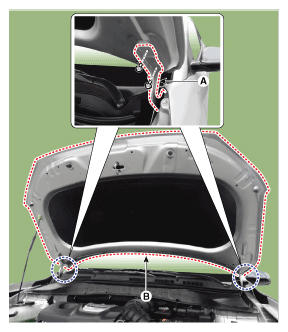

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening Torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
1. Make sure the hood locks/unlocks and opens/closes properly.
2. Adjust the hood alignment.
