Repair Procedures: Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the steering column shroud panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

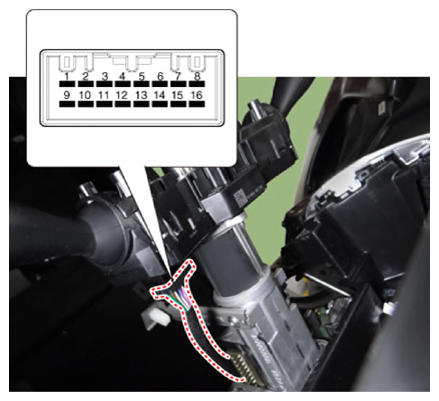

- Check for continuity between the terminals in each switch position according to the table.
| Switch | Switch position | Switch terminal | Resistance (Ω, ±3.5%) |
|---|---|---|---|
| Front wiper switch | MIST | 1 - 9 | ∞330 |
| OFF | ∞ | ||
| INT (AUTO) | 800 | ||
| LOW | 1800 | ||
| HIGH | 5700 | ||
| Rear wiper switch | OFF | 9 - 16 | ∞ |
| LOW | 910 | ||
| HIGH | 2910 | ||
| Wiper intermittent volume | Volume 1 | 7-9 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1310 | ||
| Volume 4 | 2610 | ||
| Volume 5 | 7310 | ||
| Fog lamp switch | OFF | 9 - 10 | ∞ |
| Front | 910 | ||
| Rear | 2910 | ||
| Turn signal switch | OFF | 9 - 12 | ∞ |
| Left | 910 | ||
| Right | 2910 | ||
| Dimmer & Passing switch | OFF | 9 - 13 | ∞ |
| Passing | 910 | ||
| Dimmer | 2910 | ||
| Light switch | OFF | 9 - 14 | 680 |
| AUTO | ∞ | ||
| Tail lamp | 1680 | ||
| Low beam | 5580 |
