Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
(Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

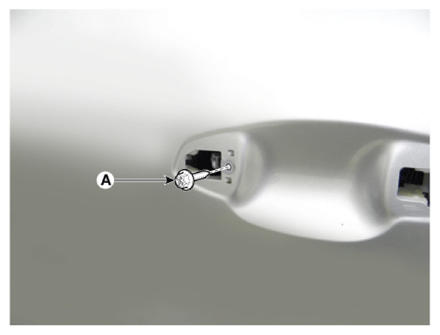

Loosen the front outside handle base mounting bolt (A).
Tightening torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb.ft, 17.4 - 26.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

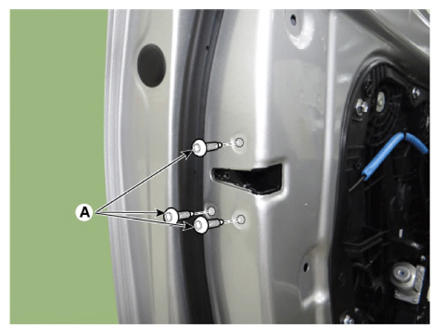

Loosen the front door latch mounting screws (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf-m, 5.0 - 8.0 lb.ft, 60.8 - 95.5 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

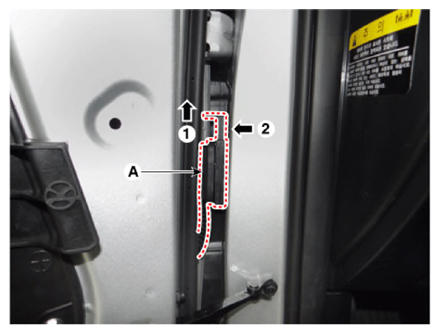

Disconnect the front door main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

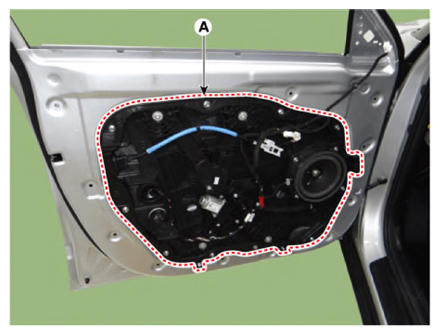

Loosen the mounting bolts and remove the front door module (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

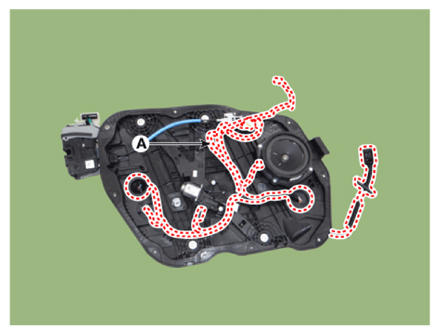

Disconnect the connectors and front door module wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door latch assembly.
(Refer to Front Door - "FRONT DOOR LATCH ")
Remove the front door speaker
(Refer to Body Electrical System - "SPEAKER ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
To install, reinstall in reverse order of removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
