Components & Components Location: Components

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[HPB Console type]

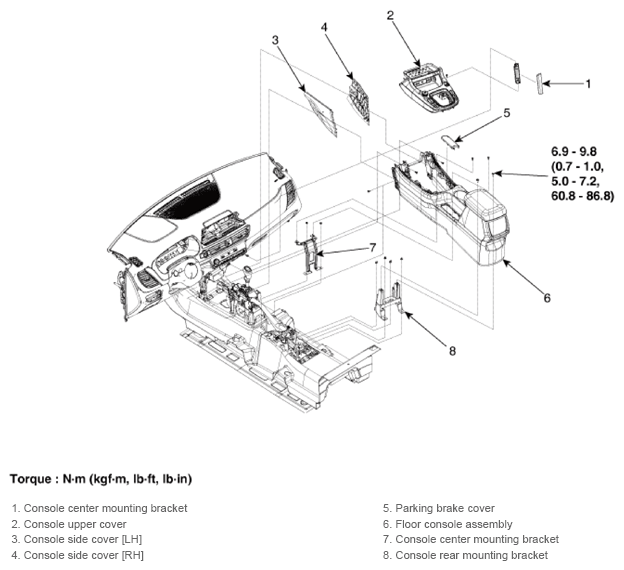

Fig 1: Floor Console Components Location With Torque Specification (HPB Console Type)

Courtesy of KIA MOTORS AMERICA, INC.

[EPB Console type]

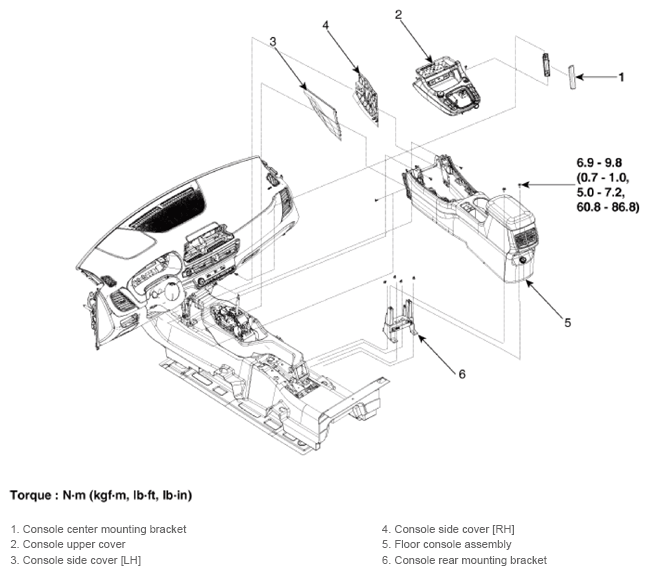

Fig 2: Floor Console Components Location With Torque Specification (EPB Console Type)

Courtesy of KIA MOTORS AMERICA, INC.
