Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the rear console cover.
(Refer to Floor Console - "REAR CONSOLE COVER ")
After loosening the mounting screws, remove the rear air vent duct (A).
Tightening torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb.ft, 17.4 - 26.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

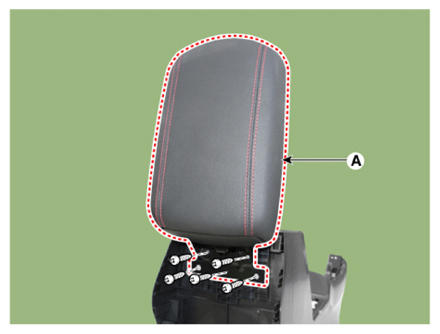

Loosen the mounting screws, remove the console armrest (A).
Tightening torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb.ft, 17.4 - 26.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
