Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Put on gloves to prevent hand injuries.
CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
  • Take care not to bend or scratch the trim and panels.

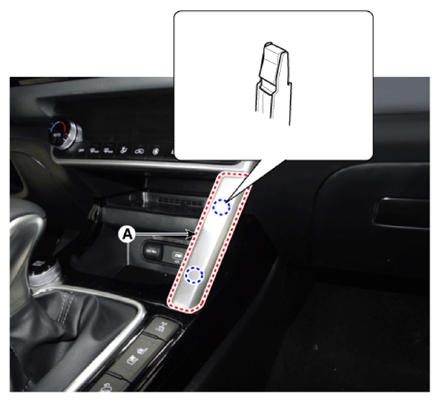

  1. Using a screwdriver or remover, remove the console upper garnish (A).

    Information

    Insert a flat head screwdriver between the console upper garnish and heater control to remove the console upper cover.

    G13486223Courtesy of KIA MOTORS AMERICA, INC.

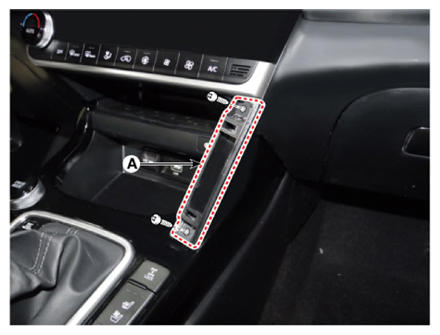

  2. After loosening the mounting screws, remove the console lower garnish (A).

    Tightening torque:

    2.0 - 2.9 N.m (0.2 - 0.3 kgf-m, 1.4 - 2.2 lb.ft, 17.4 - 26.0 lb.in)

    G13486224Courtesy of KIA MOTORS AMERICA, INC.

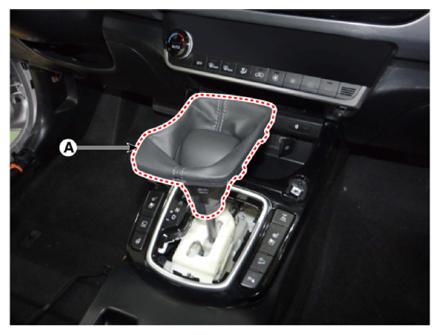

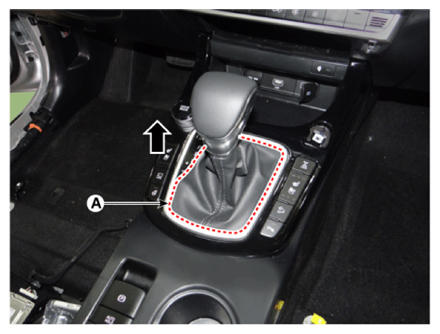

  3. Remove the gear knob & boots (A) by pulling it upwards.
    G13486225Courtesy of KIA MOTORS AMERICA, INC.
    G13486226Courtesy of KIA MOTORS AMERICA, INC.

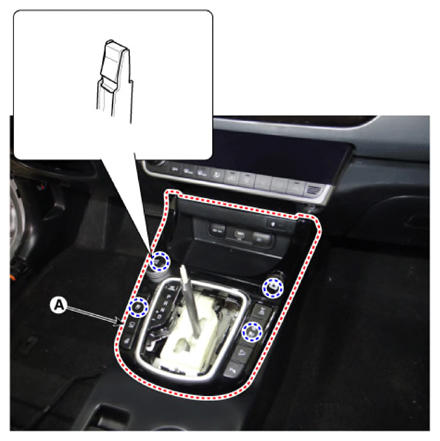

  4. Using a screwdriver or remover, remove the console upper cover (A).

    Information

    Hold the rear of console upper cover and remove it by lifting off while rotating upward.

    G13486227Courtesy of KIA MOTORS AMERICA, INC.

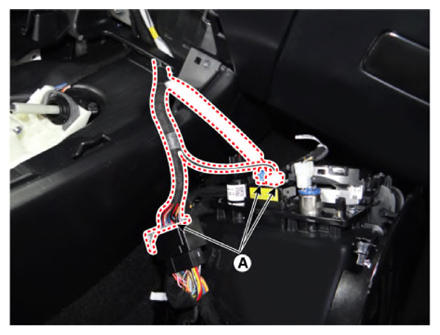

  5. Disconnect the connectors (A).
    G13486228Courtesy of KIA MOTORS AMERICA, INC.

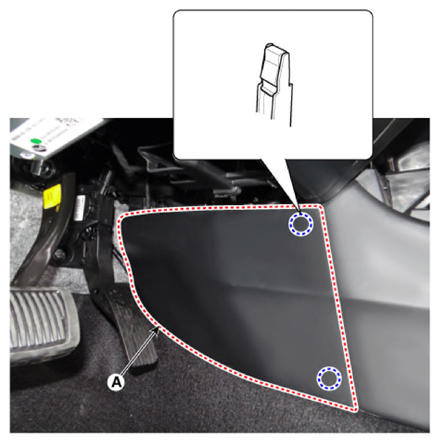

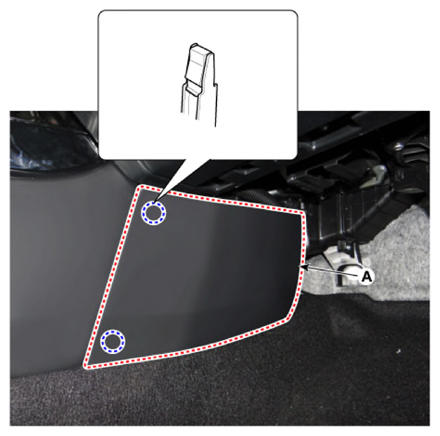

  6. Using a screwdriver or remover, remove the console side cover (A).

    [LH]

    G13486229Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13486230Courtesy of KIA MOTORS AMERICA, INC.

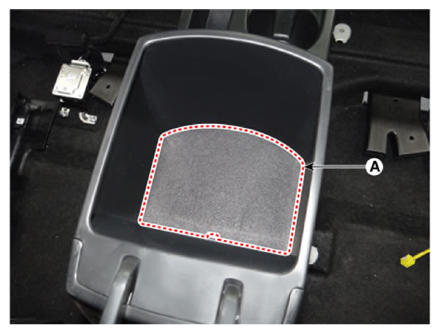

  7. Remove the storage box pad (A).
    G13486231Courtesy of KIA MOTORS AMERICA, INC.

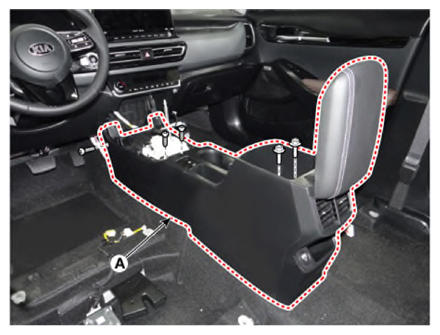

  8. After loosening the mounting screws and bolts, remove the floor console assembly (A).

    Tightening torque:

    6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb.ft, 60.8 - 86.8 lb.in)

    G13486232Courtesy of KIA MOTORS AMERICA, INC.

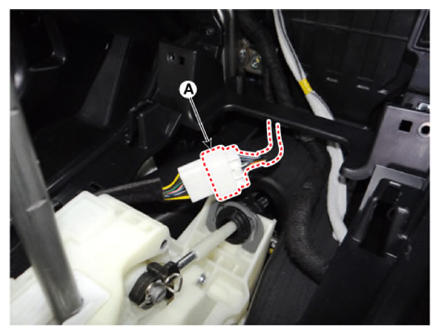

  9. Separate the console main connector (A).
    G13486233Courtesy of KIA MOTORS AMERICA, INC.
  10. To install, reinstall in reverse order of removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips (or pin-type retainers).
