Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the tailgate lower trim.
(Refer to Tailgate - "TAILGATE TRIM ")

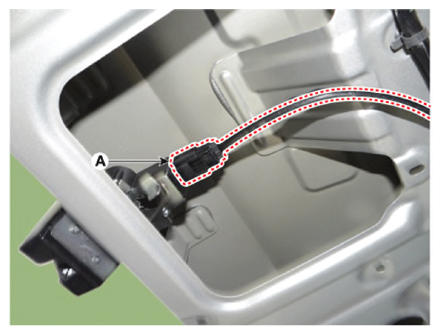

Disconnect the tailgate latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

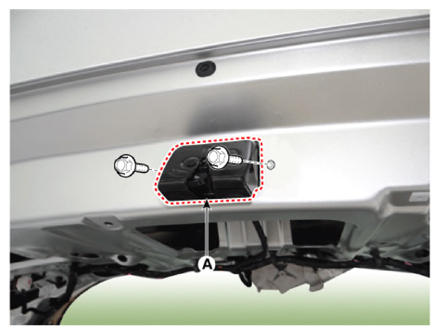

After loosening the mounting bolts, remove the tailgate latch (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.1 - 8.0 lb.ft, 60.8 - 95.5 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
NOTE:
- Make sure the tailgate locks/unlocks and opens/closes properly.
- Adjust the tailgate alignment.
- Make sure the connectors are connected in properly.
