Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

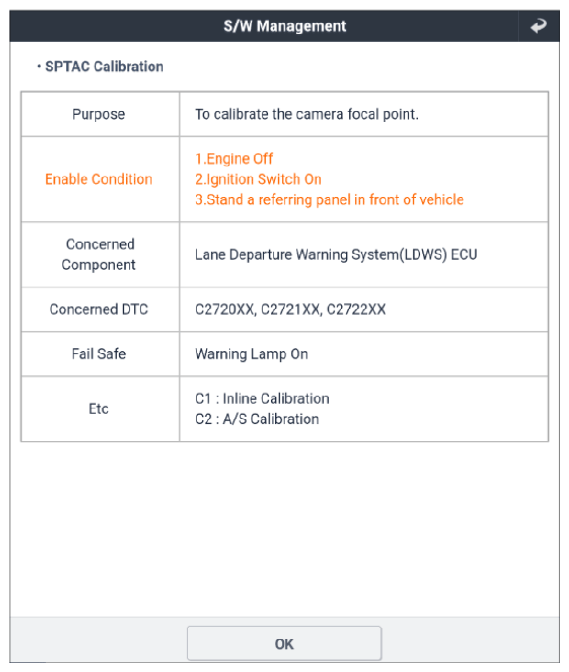

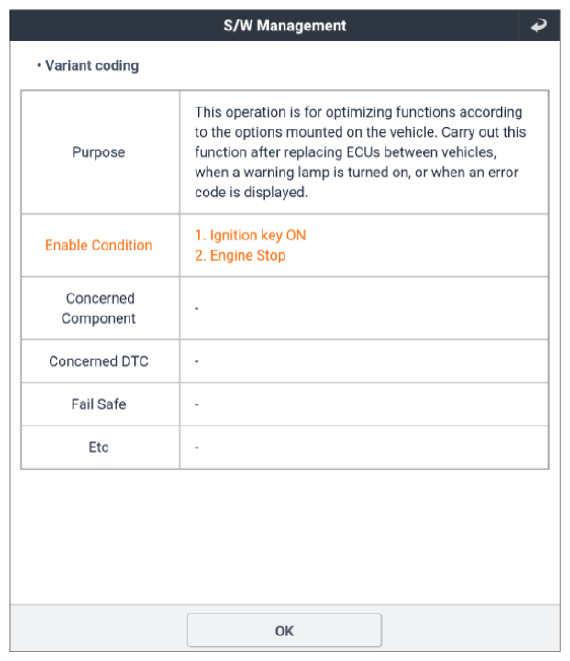

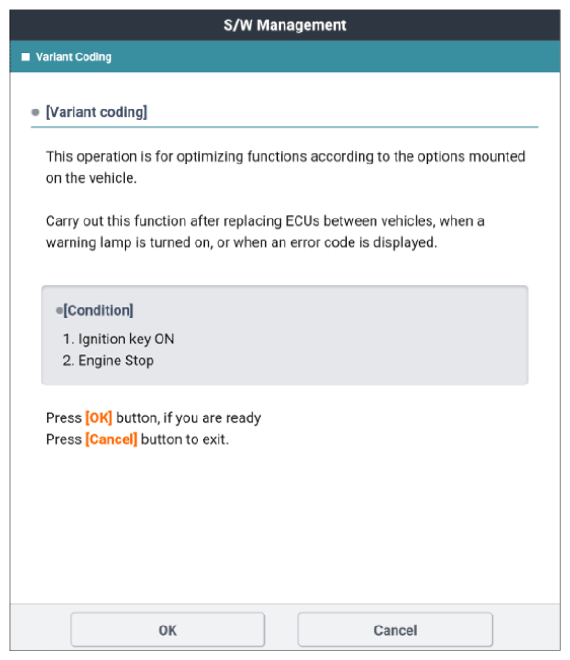

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 3

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON". (with calibration target)	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 9

In cases that require the calibration
1. In case of MFC ECU replacement.
2. In case MFC ECU is removed from the windshield or bracket.
3. In case of windshield replacement.
4. In case MFC bracket is damaged.

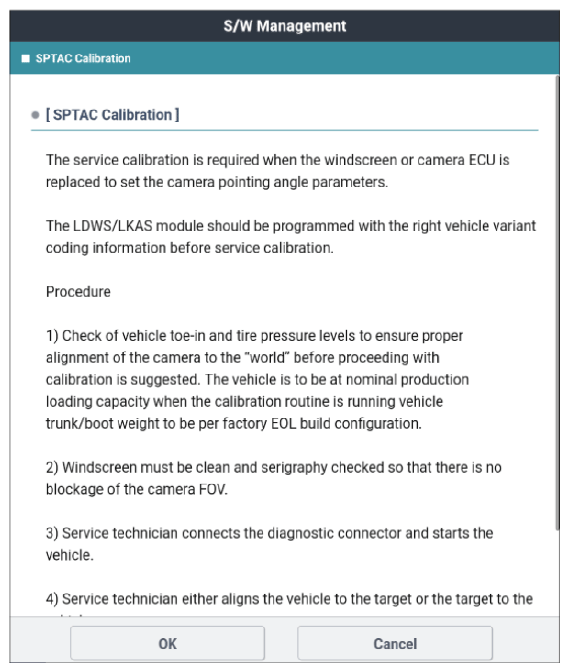

Calibration procedure

Check for vehicle alignment and tire pressure for accurate camera calibration.
Windshield must be clean and free of any dirt or object.

Calibration target installation procedure as follows:

Set the calibration target height approx. 88 to 92cm from the ground and align the center of target with center line of vehicle.
Center of target and center of vehicle should be within -5 to +5cm

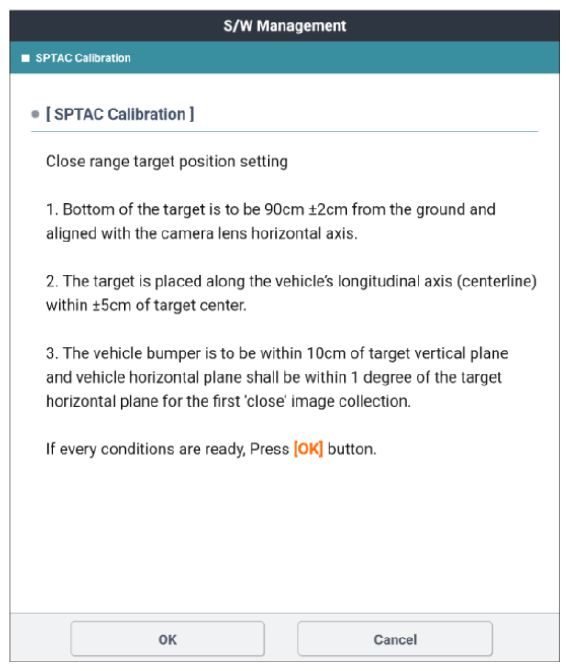

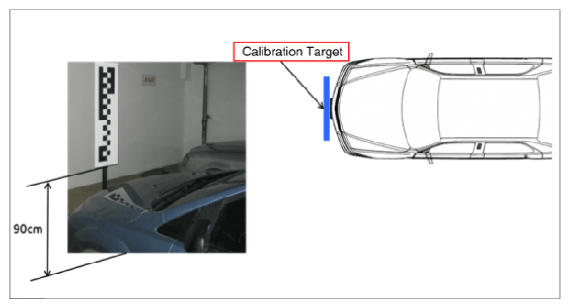

Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1 degree. (Close range target setting)
Perform distance target setting after performing close target setting.

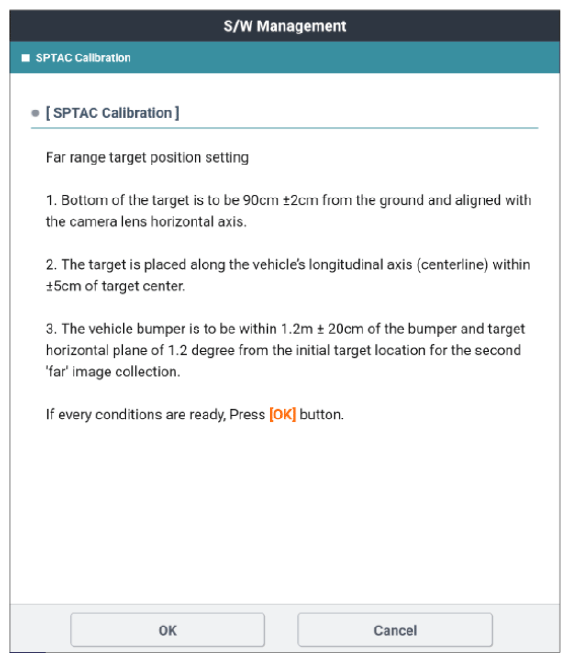

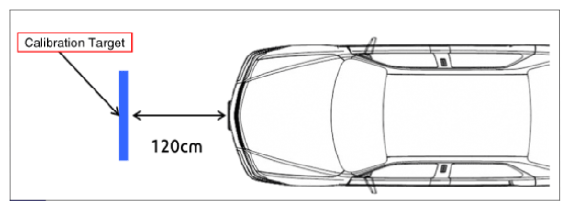

Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1 degree. (Far range target setting)
