Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad garnish assembly [RH].

    (Refer to Crash Pad - "CRASH PAD GARNISH ASSEMBLY [RH] ")

  4. Remove the console upper front garnish.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

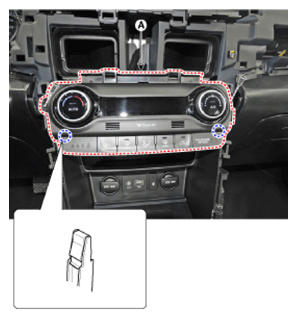

  5. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G12606356Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the connector (A) and the air hose (B).
    G12606357Courtesy of HYUNDAI MOTOR AMERICA
  7. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
