Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad garnish assembly [RH].

    (Refer to Crash Pad - "CRASH PAD GARNISH ASSEMBLY [RH] ")

  4. Remove the console upper front garnish.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  5. Remove the glove box.

    (Refer to Body - "GLOVE BOX ")

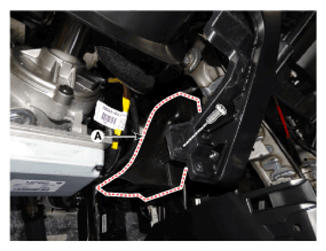

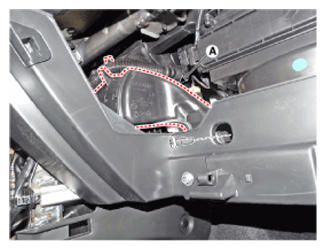

  6. Remove the shower duct (A) after loosening the screw.

    [LH]

    G12606345Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    G12606346Courtesy of HYUNDAI MOTOR AMERICA

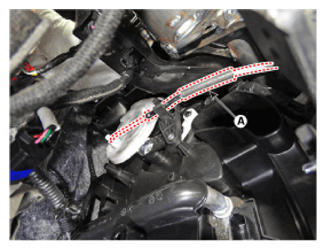

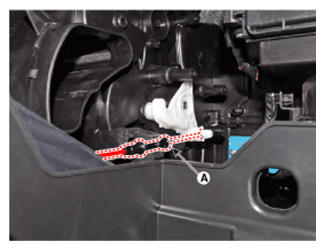

  7. Disconnect the Manual Controller Cable (A)

    [LH]

    G12606347Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    G12606348Courtesy of HYUNDAI MOTOR AMERICA

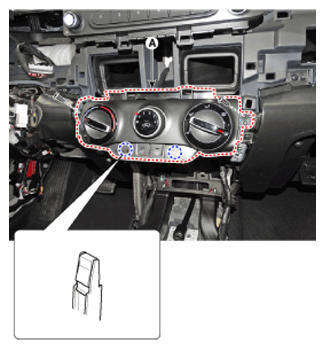

  8. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G12606349Courtesy of HYUNDAI MOTOR AMERICA

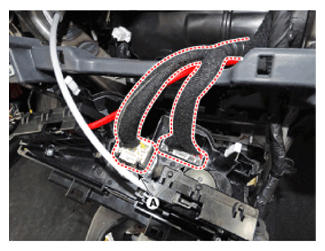

  9. Disconnect the connector (A) and the air hose (B).
    G12606350Courtesy of HYUNDAI MOTOR AMERICA
  10. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
