Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Disconnect the negative battery terminal.

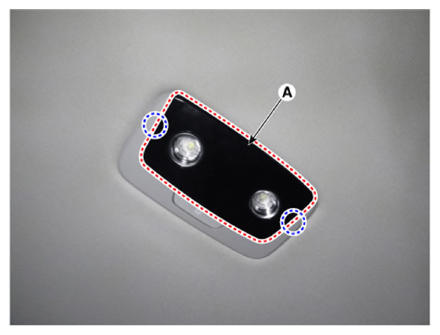

- Remove the room lamp lens (A) by using a flat-tip screwdriver or remover.
 Courtesy of KIA MOTORS AMERICA, INC.
|

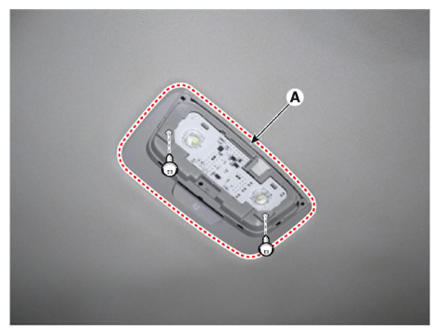

- Remove the room lamp (A) after loosening the mounting screws.
 Courtesy of KIA MOTORS AMERICA, INC.
|

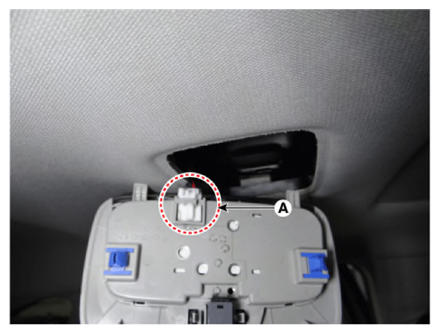

- Disconnect the room lamp connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
Information

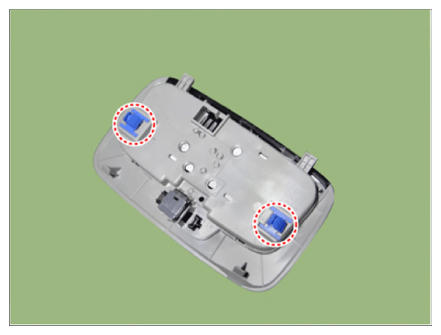

Replace any damaged clips.
 Courtesy of KIA MOTORS AMERICA, INC.
|
