Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the crash pad center lower panel.
(Refer to Body - "CRASH PAD CENTER LOWER PANEL ")

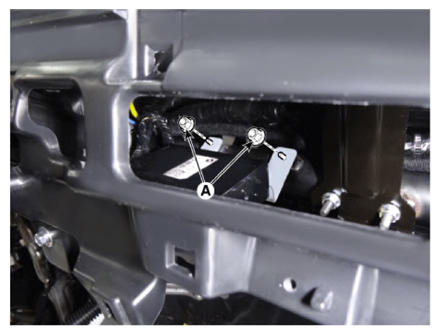

- Loosen the sound mood lamp unit mounting nuts (A).

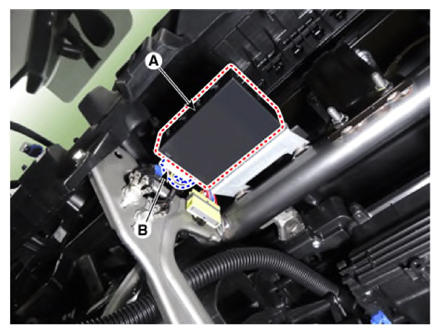

- Remove the sound mood lamp unit (A) after disconnecting the connector (B).
