Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Be careful not to damage the hood and body.

Information

Removing or installing the hood requires an assistant.
When removing the clips, use a clip remover.

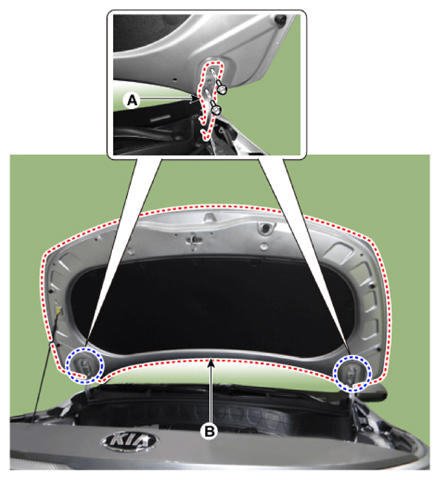

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 Kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
