Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

Information

When Removing With A Flat-Tip Screwdriver Or Remover, Wrap Protective Tape Around The Tools To Prevent Damage To Components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

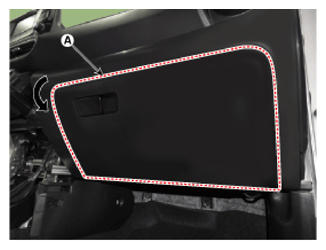

Open the glove box (A) in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA

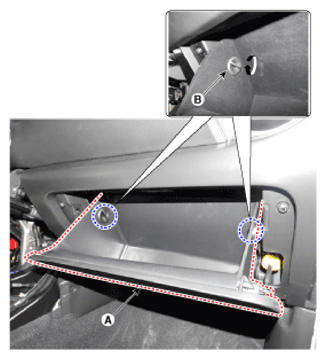

Pull out the both sides stopper (B) from the glove box (A).

Courtesy of HYUNDAI MOTOR AMERICA

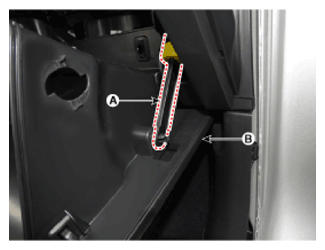

Remove the air damper (A) from the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

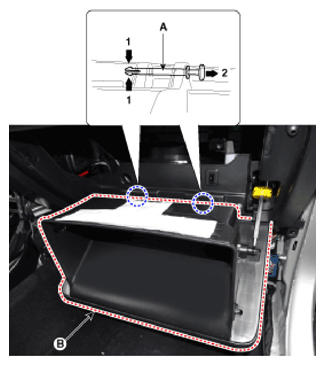

Remove the lock pins (A) and then remove the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
