Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Disconnect the negative battery terminal.
Remove the crash pad garnish [RH].
(Refer to Body - "CRASH PAD GARNISH ")

Remove the AVN head unit.

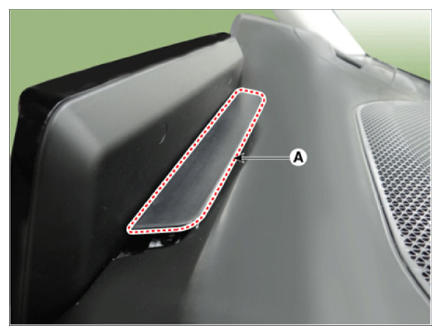

Using a screwdriver or remover, remove the center fascia upper panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

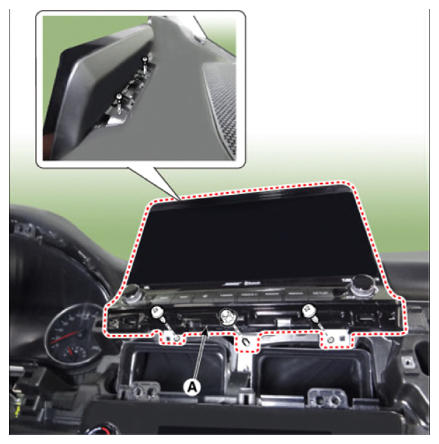

Remove the AVN head unit (A) after loosening the mounting screws and nut.

Courtesy of KIA MOTORS AMERICA, INC.

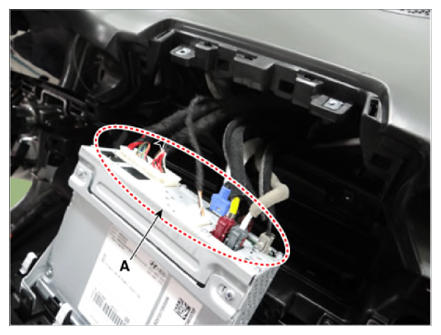

Disconnect the all connectors (A) from the AVN head unit.

Courtesy of KIA MOTORS AMERICA, INC.
