Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal.

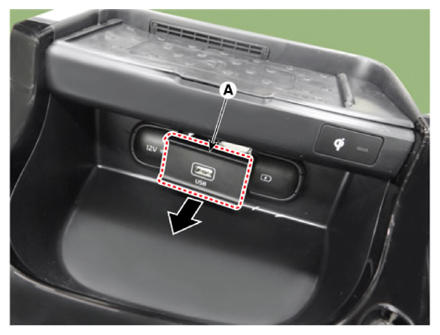

Remove the console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

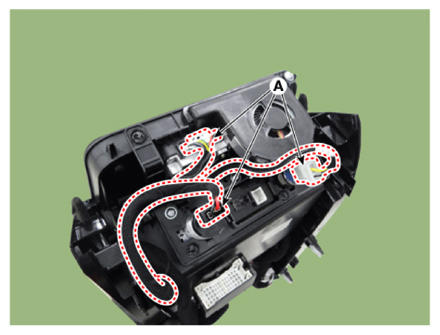

Disconnect the all connectors (A) from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.

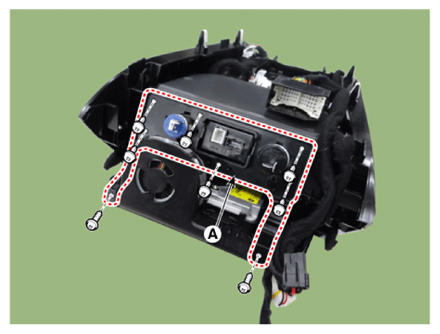

Remove the USB bracket (A) by loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

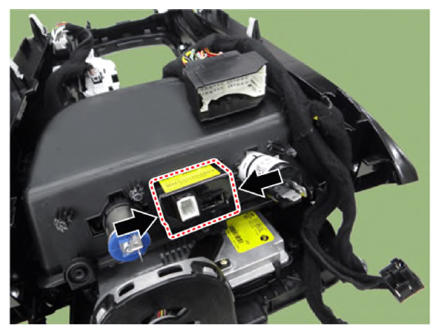

Remove the multimedia jack (A) by pressing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
