Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[General Mirror]

CAUTION: Put on gloves to prevent hand injuries.

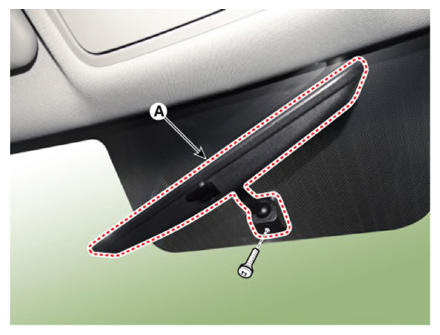

Loosen the mounted screw and push the mirror base upward to remove the mirror assembly (A).
Tightening torque:

1.5 - 2.0 N.m (0.15 - 0.2 Kgf.m, 1.1 - 1.4 lb.ft, 13.0 - 17.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.

[ECM Mirror]

CAUTION: Put on gloves to prevent hand injuries.

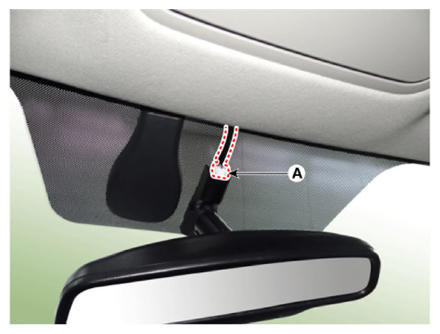

Remove the ECM mirror cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ECM mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

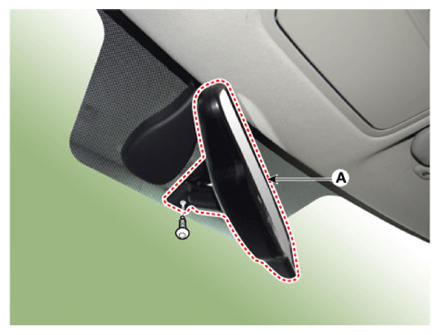

Loosen the mounted screw and push the ECM mirror base upward to remove the ECM mirror assembly (A).
Tightening torque:

1.5 - 2.0 N.m (0.15 - 0.2 Kgf.m, 1.1 - 1.4 lb.ft, 13.0 - 17.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is connected properly.
- Be careful not to damage the windshield glass.
