ESP (ESC) Control Module

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

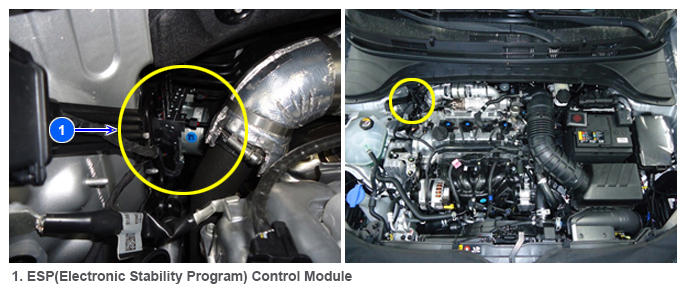

G12596080Courtesy of HYUNDAI MOTOR AMERICA

The ESP consists of an ECU (Electronic Control Unit) and a HCU (Hydraulic Control Unit).

The HCU contains a Pump Motor, Solenoid Valves, and Accumulator. The HCU increases, decreases, or maintains the hydraulic pressure supplied to a wheel by operating the return pump according to ESP control signal when ABS control is active.

The ECU monitors various sensor and switch inputs. These inputs are used to make a decision on how to operate HCU components.
