Manual Console

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

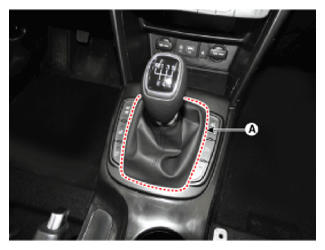

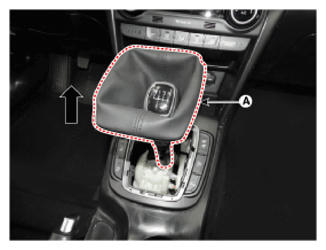

Remove the gear knob & boots (A) after turning in the counter clockwise direction.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

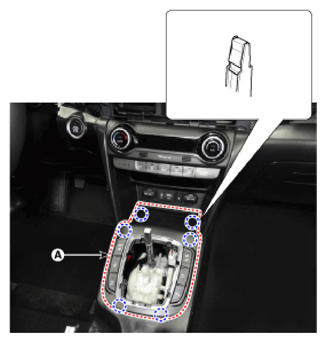

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

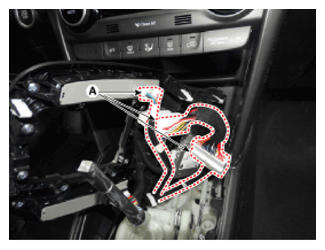

Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

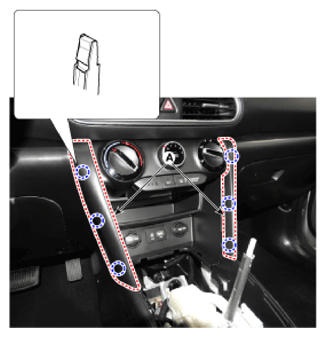

Using a remover, remove the console upper front garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

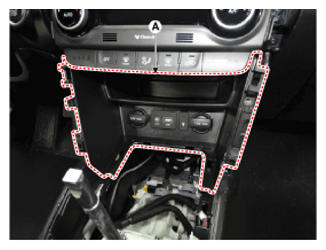

After loosening the mounting screws, remove the floor console tray assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

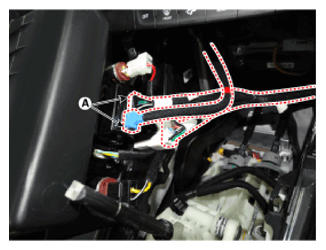

Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the parking brake cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

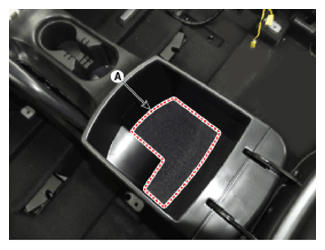

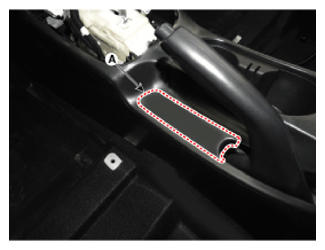

Remove the storage box pad (A).

Courtesy of HYUNDAI MOTOR AMERICA

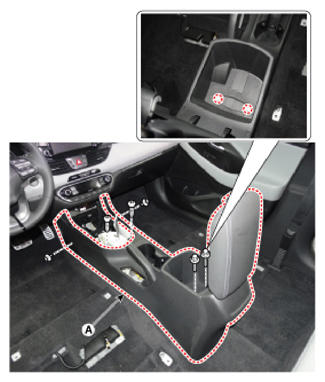

After loosening the mounting screws and bolts, remove the console rear complete assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

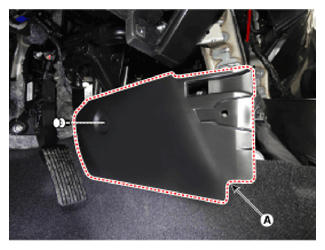

After loosening the mounting clips, remove the floor console side cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
