Repair Procedures: Installation
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.

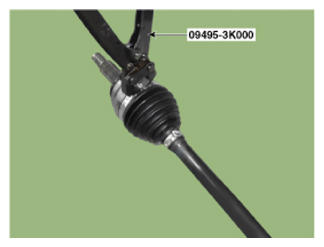

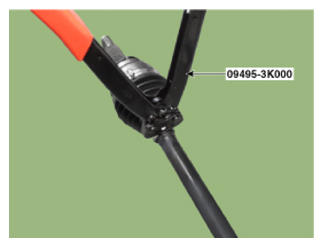

- Using the SST (09495-3K000), secure the BJ boot bands.NOTE:
- Do not reuse the boot band.
- Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
- Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
