Section 32 (Front Driveshaft Assembly)
›
Front Driveshaft
›
Components And Components Location
›
Components
Components And Components Location: Components
WARNING:
This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
[GAMMA 1.6 T-GDI]

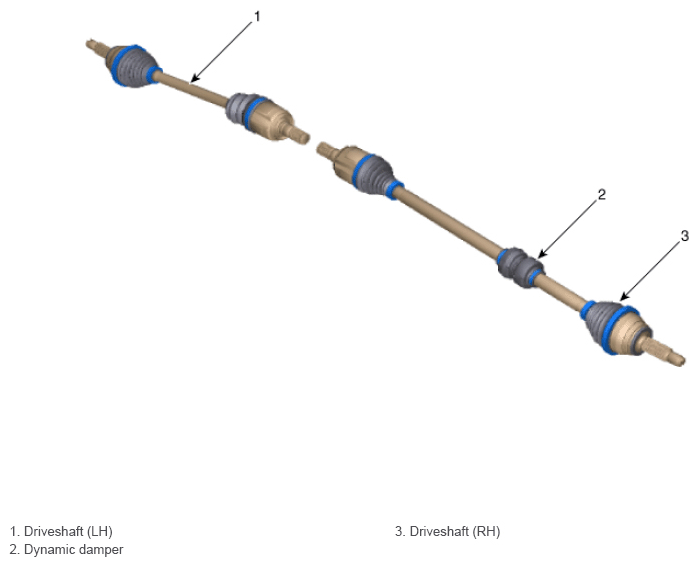

Fig 1: Front Driveshaft Components (1.6L)
Courtesy of HYUNDAI MOTOR AMERICA
[Nu 2.0 MPI]

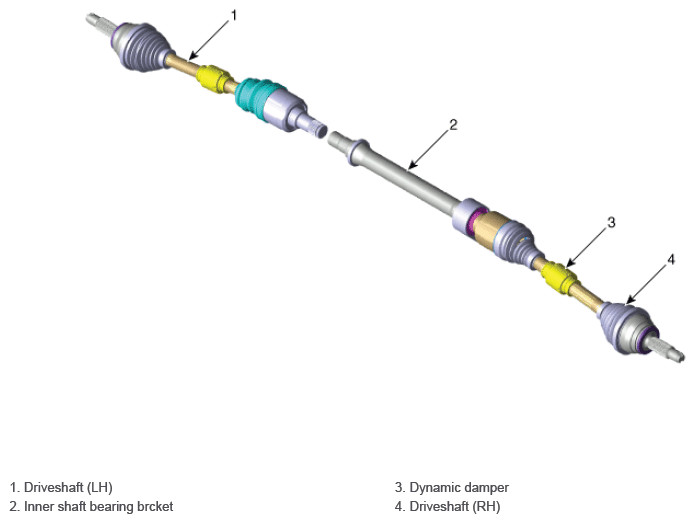

Fig 2: Front Driveshaft Components (2.0L)
Courtesy of HYUNDAI MOTOR AMERICA
