Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

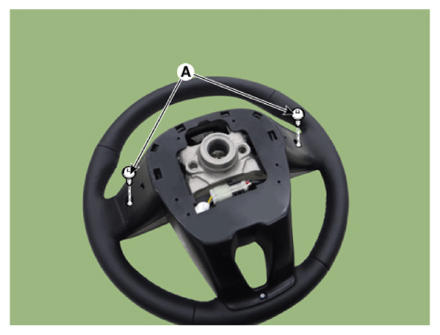

  3. Loosen the mounting screws (A).
    G13486596Courtesy of KIA MOTORS AMERICA, INC.

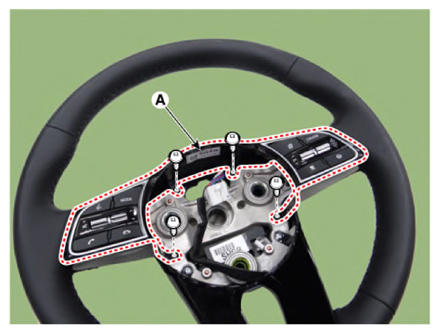

  4. Remove the steering wheel remote controller assembly (A) by loosening the mounting screws.
    G13486597Courtesy of KIA MOTORS AMERICA, INC.

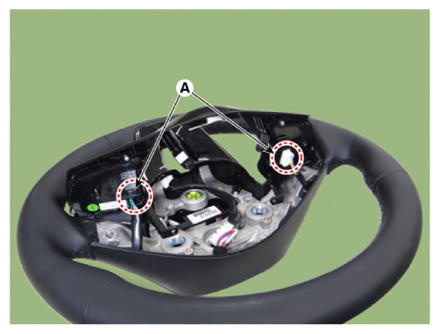

  5. Disconnect the steering wheel remote controllers connectors (A).
    G13486598Courtesy of KIA MOTORS AMERICA, INC.

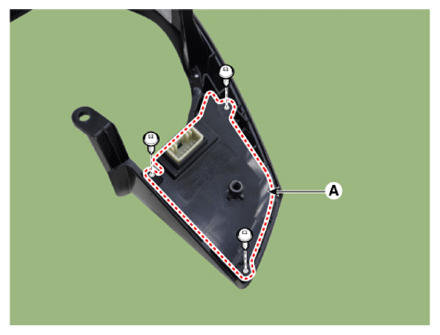

  6. Remove the steering wheel remote controllers (A) by loosening the mounting screws.

    [LH]

    G13486599Courtesy of KIA MOTORS AMERICA, INC.

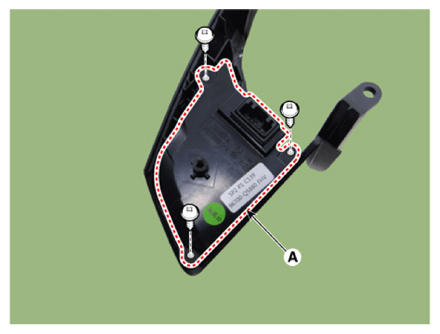

    [RH]

    G13486600Courtesy of KIA MOTORS AMERICA, INC.
