Repair Procedures: Replacement
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing cover.
(Refer to Body - "GLOVE BOX HOUSING COVER ")
- Remove the passenger's side shower duct (A) after loosening the screw.

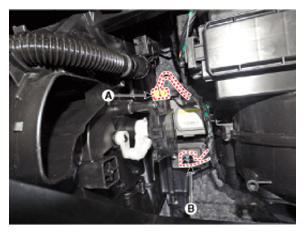

- Disconnect the connector (A) and then remove the passenger's side temperature control actuator (B) after loosening the mounting screws.
- To install, reverse the removal procedure.
