Repair Procedures: Installation
WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.
NOTE:
- When installing, place the wiper arm to the specified position and then tighten the nut.

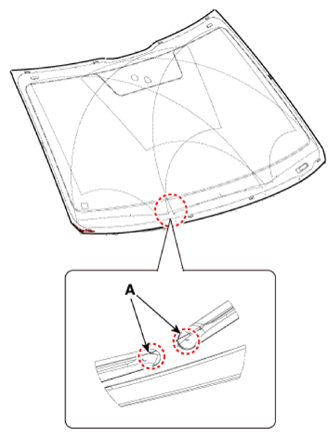

[Front wiper]
- Place the wipers to the marking (A) position of windshield glass.
 Courtesy of KIA MOTORS AMERICA, INC.
|

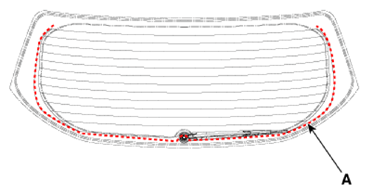

[Rear wiper]
- Wiper blade to be lined up on rear glass black end line (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
