Repair Procedures: Installation

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE:

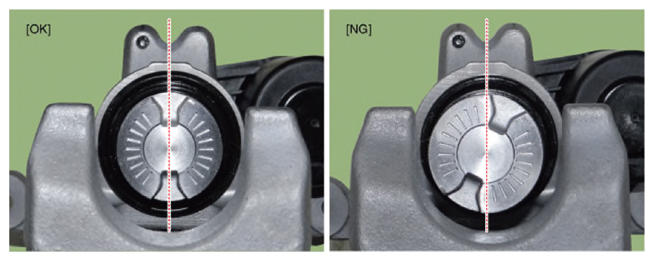

Check the groove position.

Courtesy of KIA MOTORS AMERICA, INC.

For the brake pad to set on the normal operation position, depress the brake pedal halfway several times until the brake pedal gains resistance.

Apply the parking brake several times and check for normal operation.
NOTE: With EPB: After installing the rear caliper, perform "Brake Pad Replacement Mode" using the KDS.
(Refer to "ELECTRIC PARKING BRAKE (EPB) ").
Without EPB:
After disassembling/assembling the caliper body or replacing the brake caliper, parking brake cable or brake disc, re-adjust the parking brake.
(Refer to Parking Brake System - "PARKING BRAKE CABLE ").
