ABS Control
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

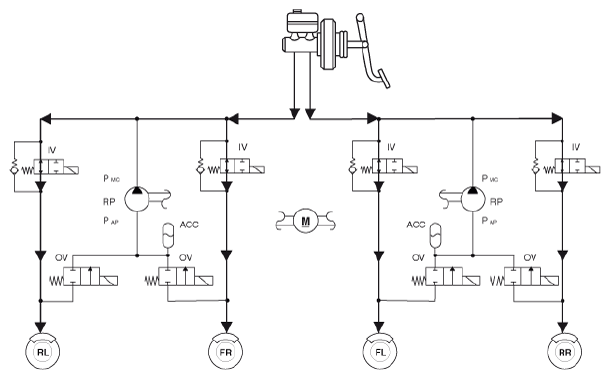

- Normal Braking without ABS
Inlet Valve (IV) Outlet Valve (OV) Return Pump Operation Open Close OFF NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump

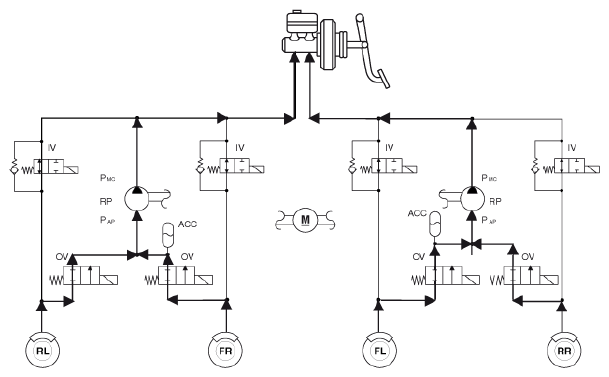

- Decrease Mode
Inlet Valve (IV) Outlet Valve (OV) Return Pump Operation Close Open ON (Motor speed control) NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump

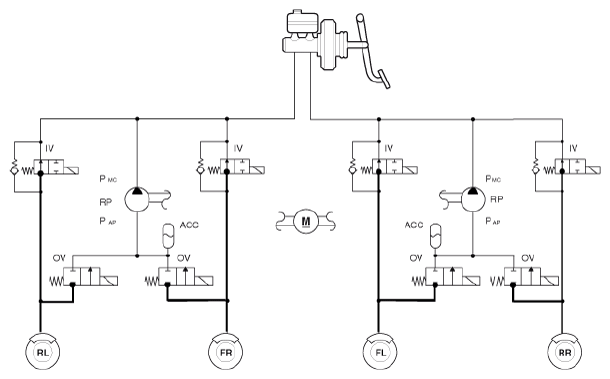

- Hold Mode
Inlet Valve (IV) Outlet Valve (OV) Return Pump Operation Close Close ON (Motor Speed Control) NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump

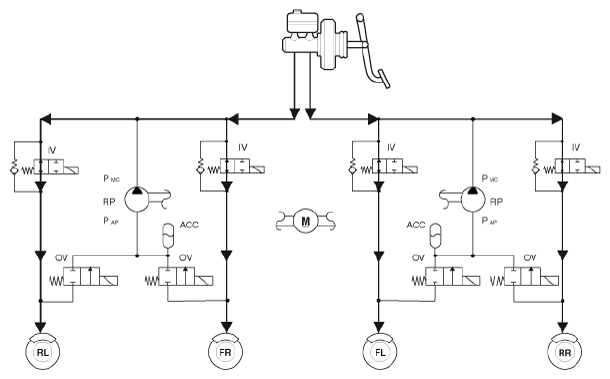

- Increase Mode
Inlet Valve (IV) Outlet Valve (OV) Return Pump Operation Open Close ON (Motor Speed Control) NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
