Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the cover and loosen the front seat mounting bolts.

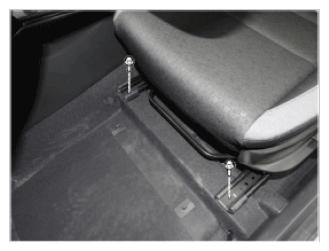

    [Front]

    Tightening Torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G12605308Courtesy of HYUNDAI MOTOR AMERICA

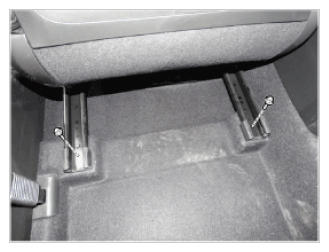

    [Rear]

    G12605309Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the main connector (A), side airbag connector (B), front seat belt buckle connector (C).

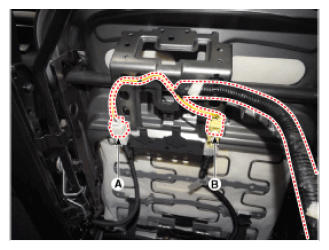

    [Driver's]

    G12605310Courtesy of HYUNDAI MOTOR AMERICA

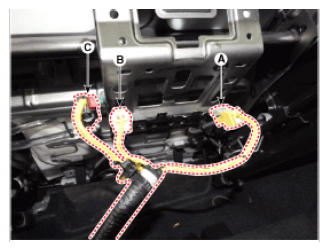

    [Passenger"s]

    G12605311Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    The installation procedures of seat mounting bolts

    • Push the seat to the rear end of slides and initially tighten the front mounting bolts.
    • Push the seat to the front end of slides and completely tighten the rear mounting bolts.
    • Send the seat to the rear end again to completely tighten the front mounting bolts.
    • Check the seat for smooth movement.
    • For the Non-Automatic slide seats, check the seats are fixed at each designated fixing position.
