Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

Information

When Removing With A Flat-Tip Screwdriver Or Remover, Wrap Protective Tape Around The Tools To Prevent Damage To Components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover.
(Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")
Remove the front seat shield inner cover.
(Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

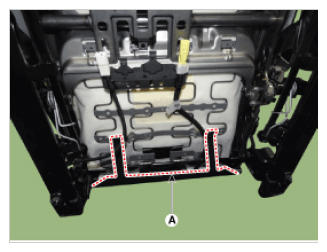

Remove the front seat lower protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

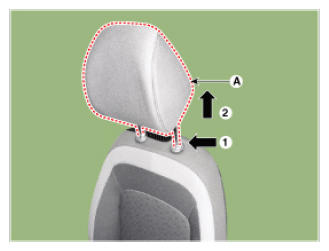

Push the lock pin, remove the front seat headrest (A).

Courtesy of HYUNDAI MOTOR AMERICA

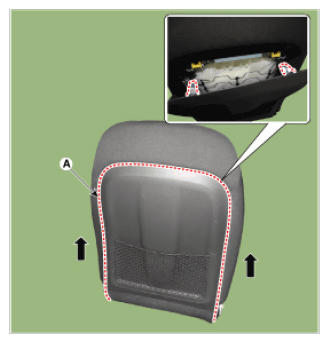

Remove the front seat back board (A).

NOTE:

Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
Be careful not to damage the fixing clips.

Courtesy of HYUNDAI MOTOR AMERICA

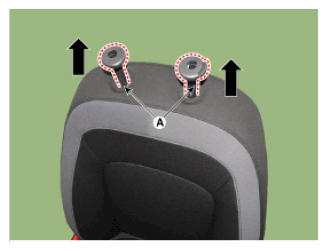

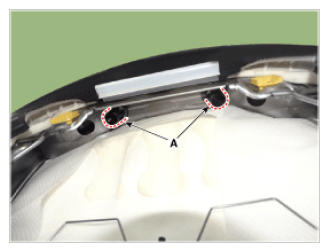

Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Remove the protector (A) from the front seat back frame.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the side airbag wiring connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat back cover assembly (A) from the front seat back frame.

Courtesy of HYUNDAI MOTOR AMERICA
After removing the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover, remove the seat back cover (C).

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse removal procedure.

Information

Make sure that the connectors are connected completely
Replace any damaged clips (or pin-type retainers).
To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).

Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Courtesy of HYUNDAI MOTOR AMERICA
