Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the driver airbag module (DAB).

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  4. Disconnect the connector (A) and then remove the steering wheel by loosening the lock bolt (B).

    Tightening Torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

    G12602397Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the steering lock bolt.
    • When assembling, match the gear teeth as the below image.
      G12602398Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  6. Remove the steering column shroud upper panel (A).
    G12602399Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the steering column shroud lower panel (A).
    G12602400Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the connector (A), (B) and then remove the clock spring (C).
    G12602401Courtesy of HYUNDAI MOTOR AMERICA
    G12602402Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the multifunction switch.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  10. Disconnect the ignition switch connector (A), (B).
    G12602403Courtesy of HYUNDAI MOTOR AMERICA
    G12602404Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the MDPS ECU connector (A), (B).
    G12602405Courtesy of HYUNDAI MOTOR AMERICA
    G12602406Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the MDPS assembly by loosening the mounting nuts (A) and bolt (B).

    Tightening Torque

    (A):  25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

    (B):  53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

    G12602407Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the motor (A) by loosening the bolts and then replace the new one.

    Tightening Torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

    G12602408Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be sure to check the last two digits of the constant in the barcode of new MDPS motor before replacing the motor.
    G12602409Courtesy of HYUNDAI MOTOR AMERICA
  14. Install in the reverse order of removal.
  15. Perform the "Inputting the motor constant value" by GDS following in the order below.
    1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
    2. Turn the self - diagnosis device after key is ON.
    3. Select the "vehicle model" and "EPS system" on GDS vehicle selection screen.

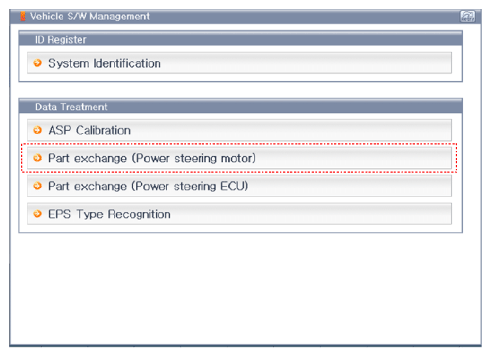

    4. Select the "Part exchange (Power steering Motor)".
      G12602410Courtesy of HYUNDAI MOTOR AMERICA

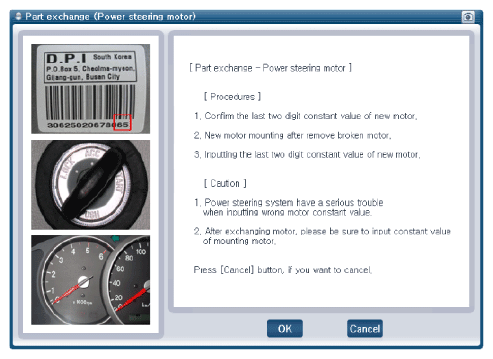

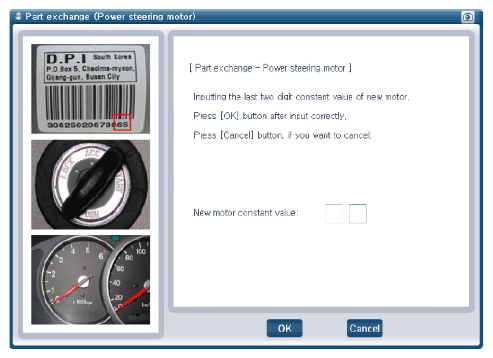

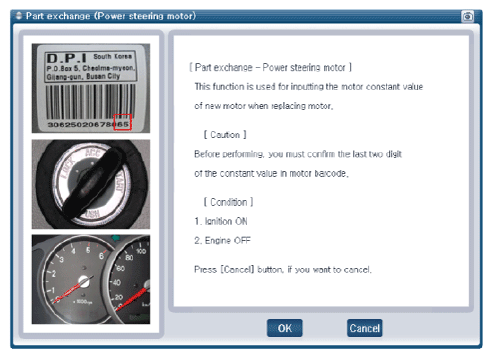

    5. Follow the instructions displayed in image on the screen.
      G12602411Courtesy of HYUNDAI MOTOR AMERICA
      G12602412Courtesy of HYUNDAI MOTOR AMERICA
      G12602413Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:
      • Entering incorrect motor constant value may cause a serious problem in the MDPS.
  16. Conduct the "ASP Calibration" by GDS.

    (Refer to MDPS Motor - "DIAGNOSIS WITH GDS ")

  17. Remove the DTC and then perform the Conduct the "MDPS TEST (Motor Driven Power Steering)" by GDS.

    (Refer to Motor Driven Power Steering - "MDPS Performance Inspection ")

  18. Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine.
